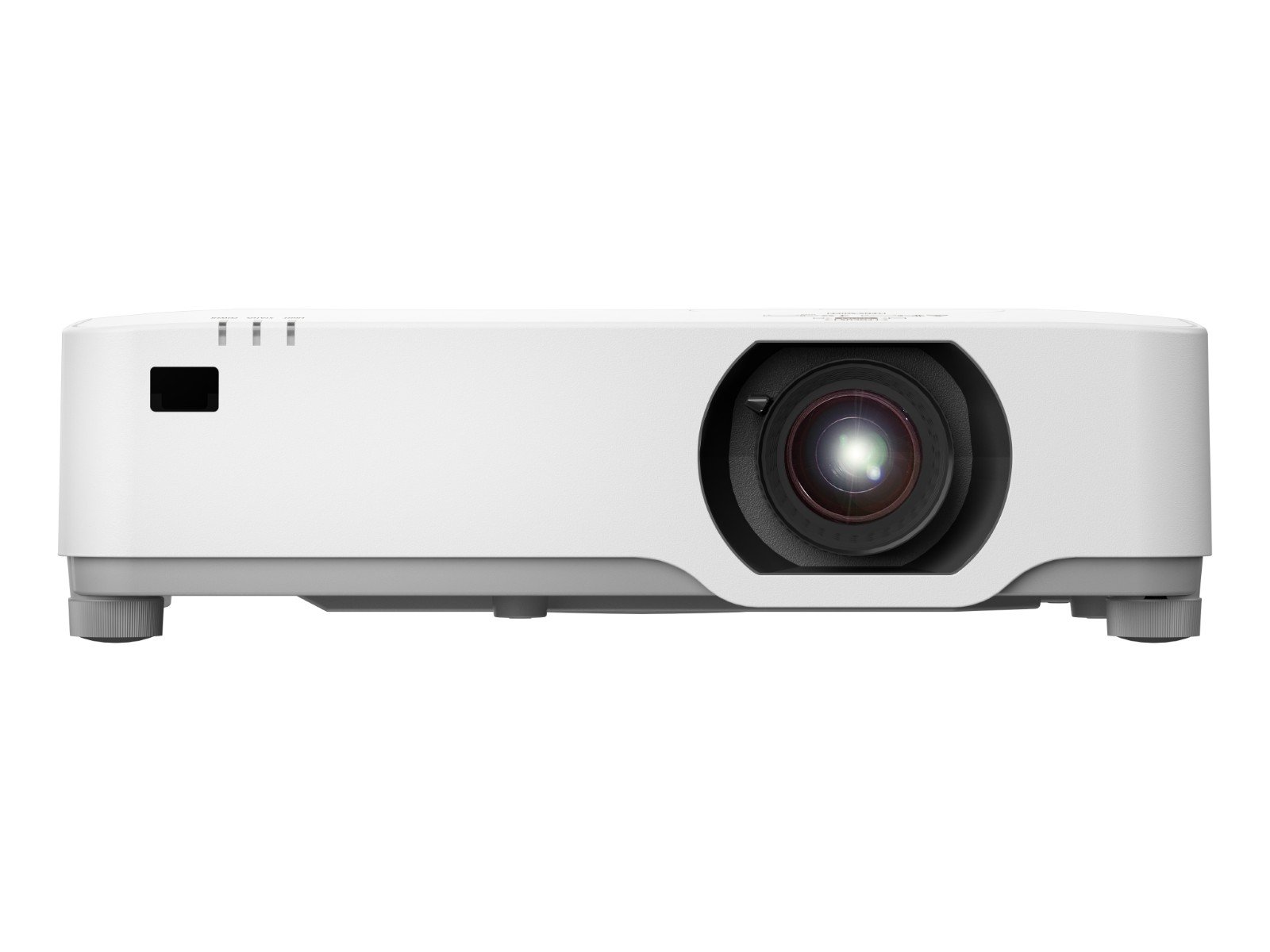

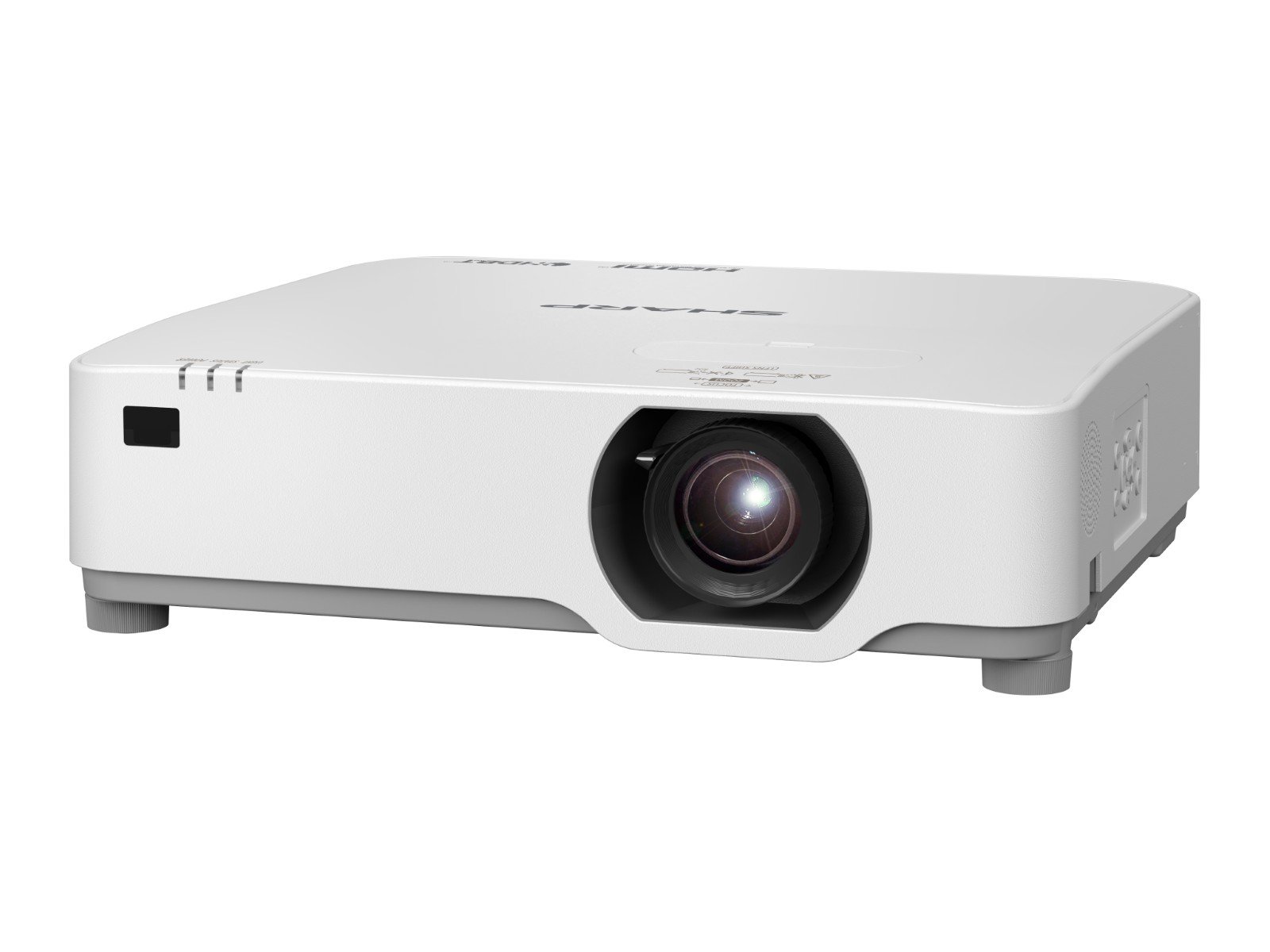

Sharp P621U new

Super silent and brilliantly versatile

Quieter than the tick of a watch, the P621U operates unobtrusively, delivering impressive projection performance without any noise distraction. With 6,200 lumens, WUXGA resolution, and 4K@30Hz input support, it produces sharp, detailed visuals with consistent clarity even in well-lit environments. Comprehensive connectivity ensures easy integration into a variety of installation scenarios, including meeting rooms, lecture halls, and immersive exhibitions.

Engineered for long-term reliability, the fully sealed optical LCD laser engine provides up to 20,000 hours of maintenance-free performance. With no lamps nor filters to replace, and low power consumption, the P621U combines dependable performance with low operating costs. Risk Group 2 compliance allows for safe operation without prescribed safety precautions, making it a practical choice for professional settings where dependable image quality and quiet performance are priorities.

24/7 Operation Crestron RoomView DICOM HDBaseT IP 5X Laser Phosphor Super Silent Projection
Projection Technology
3LCD Technology
Native Resolution
1920 x 1200 (WUXGA)
Aspect Ratio
16:10
Contrast Ratio
3000000:1
Brightness
6200 Lm Normal / 6500 Lm Center / 5500 Lm Silent Mode; compliant with ISO21118-2020
Lamp
Laser Light Source
Light Source Life [hrs]
20000 1
Lens
F= 1.6–2, f= 15.3–24.6 mm
Lens shift
H:±20, V:+44,-0
Keystone correction
+/- 30° manual horizontal / +/- 30° manual vertical
Projection Factor
1.08 – 1.76 : 1
Projection Distance [m]
0.8 – 12.9
Screen Size (diagonal) [cm] / [inch]
Maximum: 762 / 300"; Minimum: 76.2 / 30"
Zoom
Manual; x1.6
Focus Adjustment
Manual
Supported Resolutions
1080i/60; 1080p/60; 1280 x 800 (60); 1920 x 1200 (60); 3840 x 2160 (30)

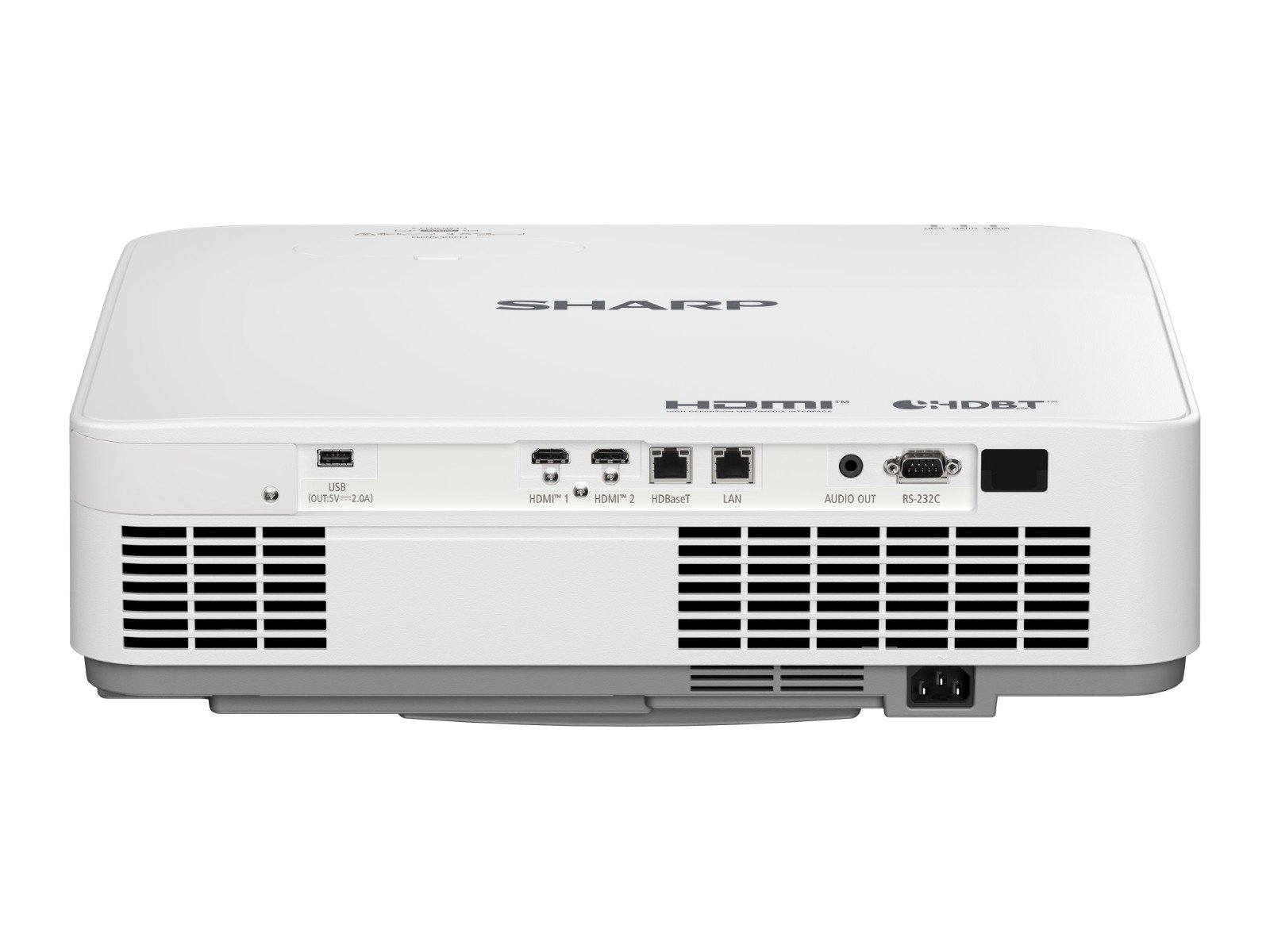

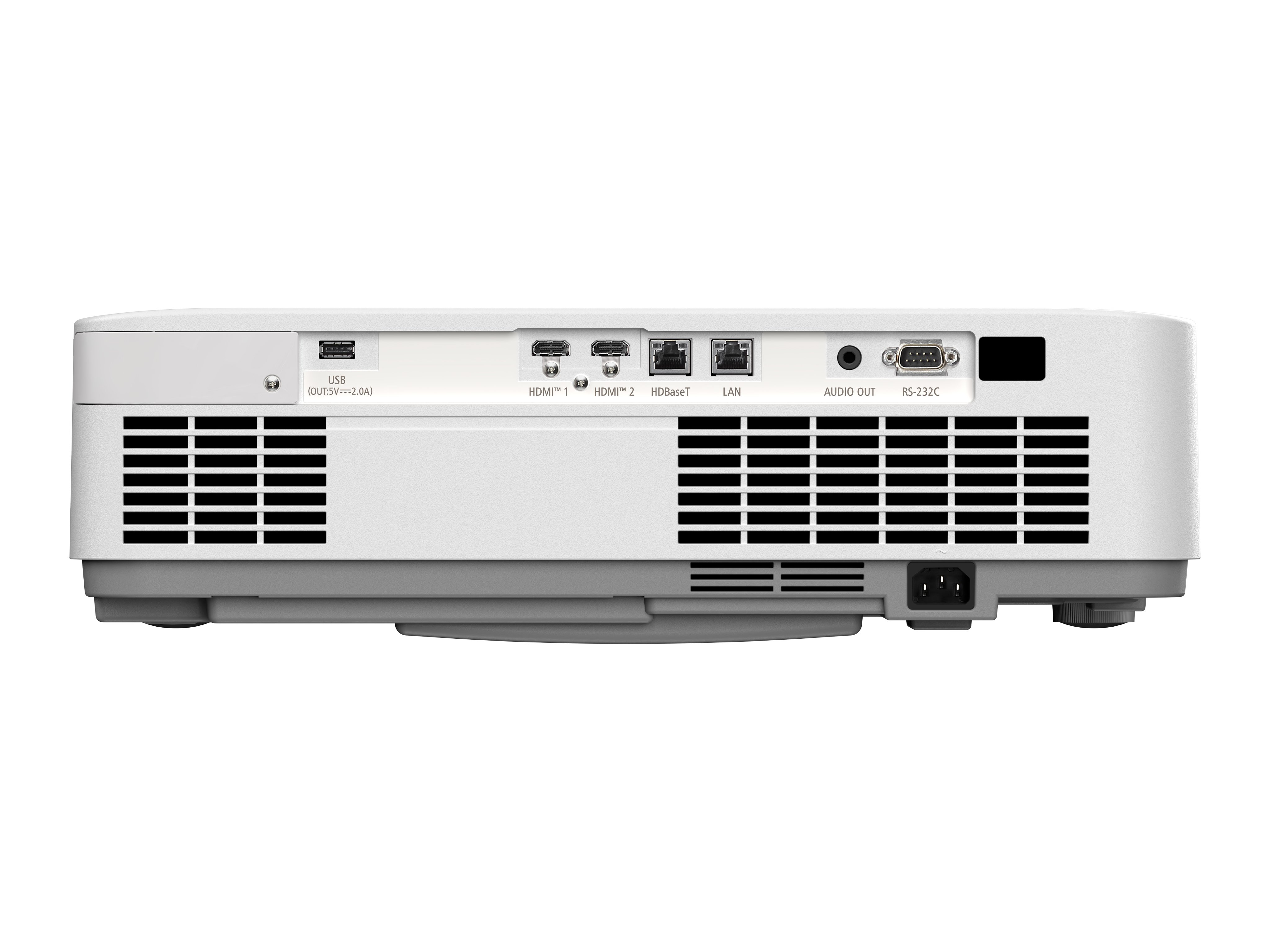

Connectivity
Digital
Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP
Audio
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control
Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN
1 x RJ45
USB
1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply
Remote Control
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Source Select
Electrical
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
310 Normal / 280 Silent Mode / 1 Network Stand-by / 0.4 Stand-by
Mechanical
Dimensions (W x H x D) [mm]
480 x 122 x 407 (without lens and feet)
Weight [kg]
9.7
Fan Noise [dB (A)]
29 / 22 (Normal / Silent)
Colour Versions
White
Environmental Conditions
Operating Temperature [°C]
5 to 40
Operating Humidity [%]
20 to 80
Storage Temperature [°C]
-10 to 50
Storage Humidity [%]
20 to 80
Ergonomics
Safety and Ergonomics
CE; ErP; RoHS; TUEV Type Approved
Speakers [W]
1 x 20 (mono)
Additional Features
Special Characteristics
Auto Power ON/OFF; Carbon Savings Meter; Constant Brightness Mode; Control ID Function; Direct Power-Off Function; Free Tilt; HDBaseT; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; NaViSet Administrator 2; Optional User Logo; OSD with 25 languages; Password Security System; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer
Green Features
Ecological Materials
Downloadable manuals; ECO packaging
Ecological Standards
ErP compliant; RoHs compliant
Warranty
Projectors
3 years pan-European service
Light Source
3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents
2x AAA Batteries; IR Remote Control (477E); Lens Cap; Power Cord (1.8 m); Projector; Quick Setup Guide; Security Sticker; Users Manual; Utility software
Optional Accessories
Optional Accessories
Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF)
Datasheet for Sharp P621U

1 50% of initial brightness at the end of specified laser life time at 25 degree ambient temperature.
