Sharp E501U new

High Brightness, Low Cost

For outstanding projection performance at an impressively low total cost of ownership, the Sharp E501U appeals to cost-conscious users who demand professional reliability. Delivering 5,000 lumens of brightness and the vivid colour reproduction of 3LCD technology, this compact WUXGA laser projector packs a powerful punch while weighing just 5kg.

Designed for versatility, the E501U offers flexible installation options and a long operational life, making it a natural fit for classrooms, training facilities, and meeting rooms. Combining high performance, low maintenance, and exceptional value, it’s the smart choice for any budget-aware installation.

Crestron RoomView DICOM Laser Phosphor NaViSet Administrator 2
Projection Technology
3LCD Technology
Native Resolution
1920 x 1200 (WUXGA)
Aspect Ratio
16:10
Contrast Ratio
5000000:1
Brightness
5000 Lm Normal / 5300 Lm Center / 4000 Lm Silent Mode; compliant with ISO21118-2020
Lamp
Laser Light Source
Light Source Life [hrs]
20000 1
Lens
F= 1.6–1.76, f= 19.16–23.02 mm
Keystone correction
+/- 30° manual horizontal / +/- 30° manual vertical
Projection Factor
1.37 – 1.65 : 1
Projection Distance [m]
0.85 – 11
Screen Size (diagonal) [cm] / [inch]
Maximum: 762 / 300"; Minimum: 76.2 / 30"
Zoom
Manual; x1.2
Focus Adjustment
Manual
Supported Resolutions
1080i/60; 1080p/60; 1280 x 800 (60); 1920 x 1200 (60); 3840 x 2160 (30)

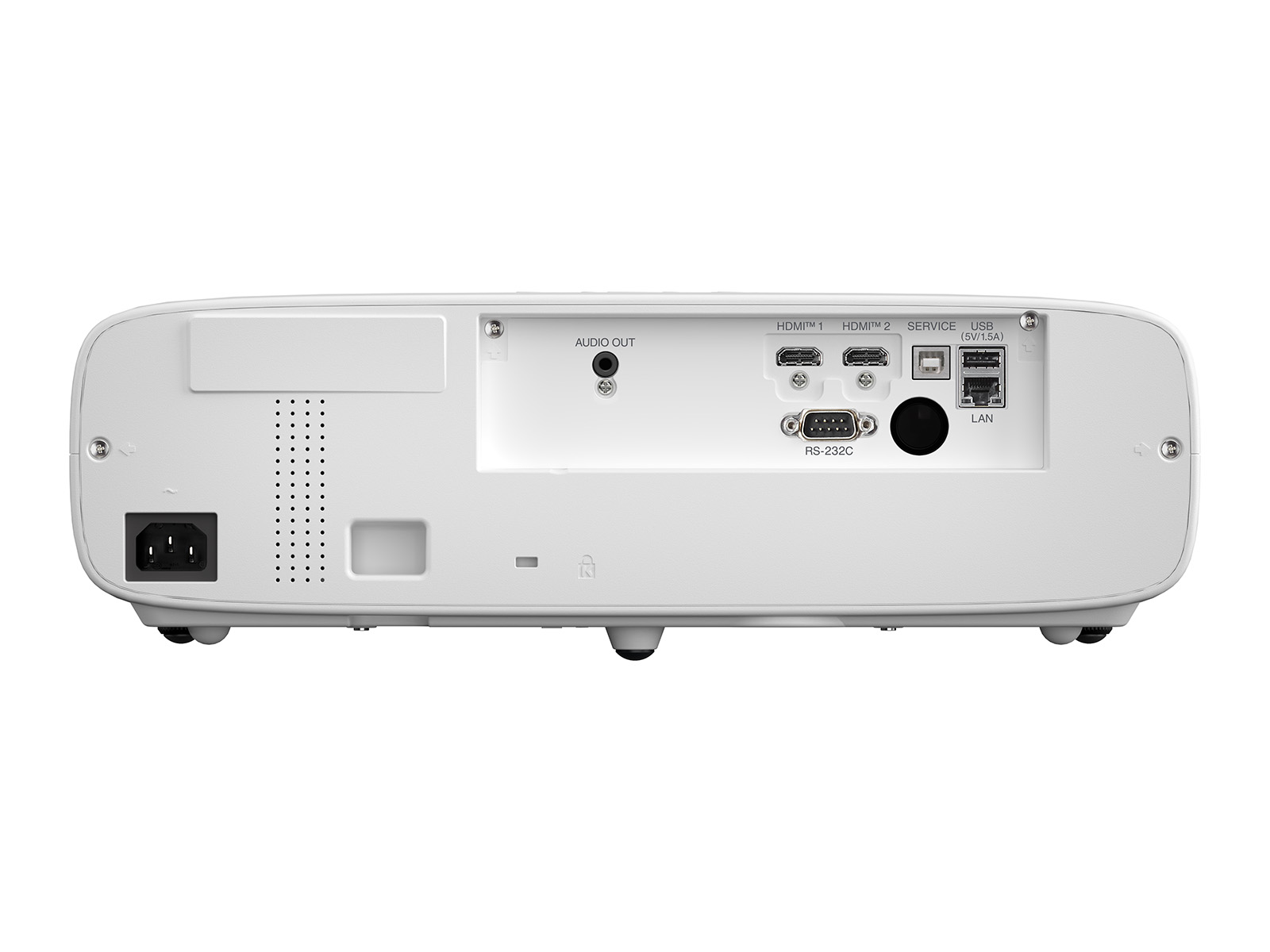

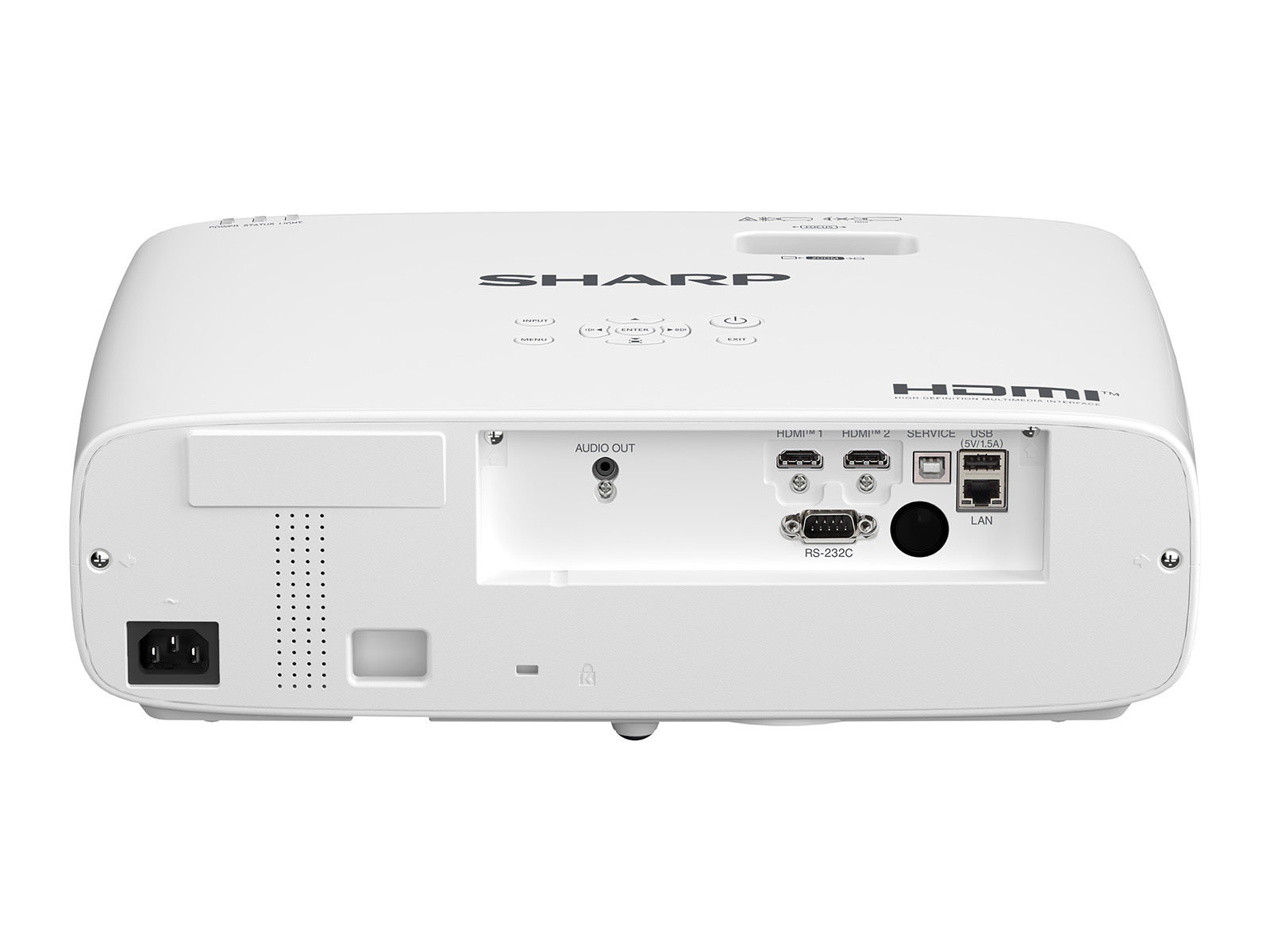

Connectivity
Digital
Input: 2 x HDMI™ supporting HDCP
Audio
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control
Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN
1 x RJ45
USB
1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 1.5A Power Supply
Remote Control
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; AV Mute; Digital Zoom; Eco Mode Control; Freeze; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Source Select; Test Picture
Electrical
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
310 Normal / 250 Silent Mode / 1 Network Stand-by / 0.4 Stand-by
Mechanical
Dimensions (W x H x D) [mm]
390 x 128 x 294 (without lens and feet)
Weight [kg]
5
Fan Noise [dB (A)]
39 / 29 (Normal / Silent)
Colour Versions
White
Environmental Conditions
Operating Temperature [°C]
5 to 45
Operating Humidity [%]
20 to 80
Storage Temperature [°C]
-10 to 50
Storage Humidity [%]
20 to 80
Ergonomics
Safety and Ergonomics
CE; ErP; RoHS; TUEV Type Approved
Speakers [W]
1 x 16 (mono)
Additional Features
Special Characteristics
Carbon Savings Meter; Control ID Function; Crestron RoomView; Free Tilt; Geometric Correction; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Light Source Adjustment; Magnify; NaViSet Administrator 2; Optional User Logo; OSD with 30 languages; Password Security System; Portrait Setting; Quick Start; Source Select with Beep Function; Test Pattern; Unique Power Saving Functions; USB Viewer
Green Features
Ecological Materials
Downloadable manuals; ECO packaging
Ecological Standards
ErP compliant; RoHs compliant
Warranty
Projectors
3 years pan-European service
Light Source
3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents
2x AAA Batteries; IR Remote Control (477E); Power Cord (3 m); Projector; Quick Setup Guide; Security Sticker; Users Manual
Optional Accessories
Optional Accessories
Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF)
Datasheet for Sharp E501U

1 50% of initial brightness at the end of specified laser life time at 25 degree ambient temperature.
