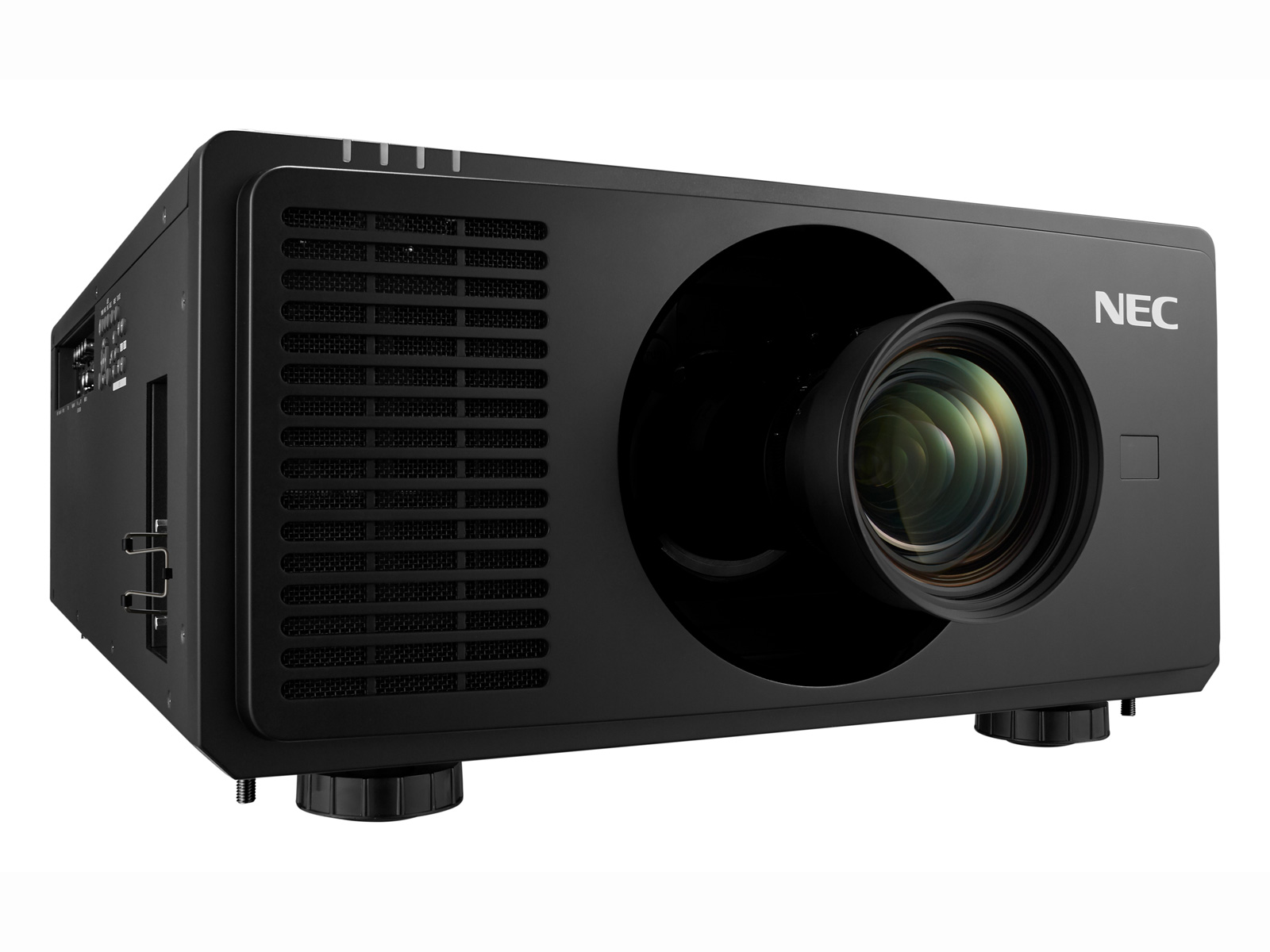

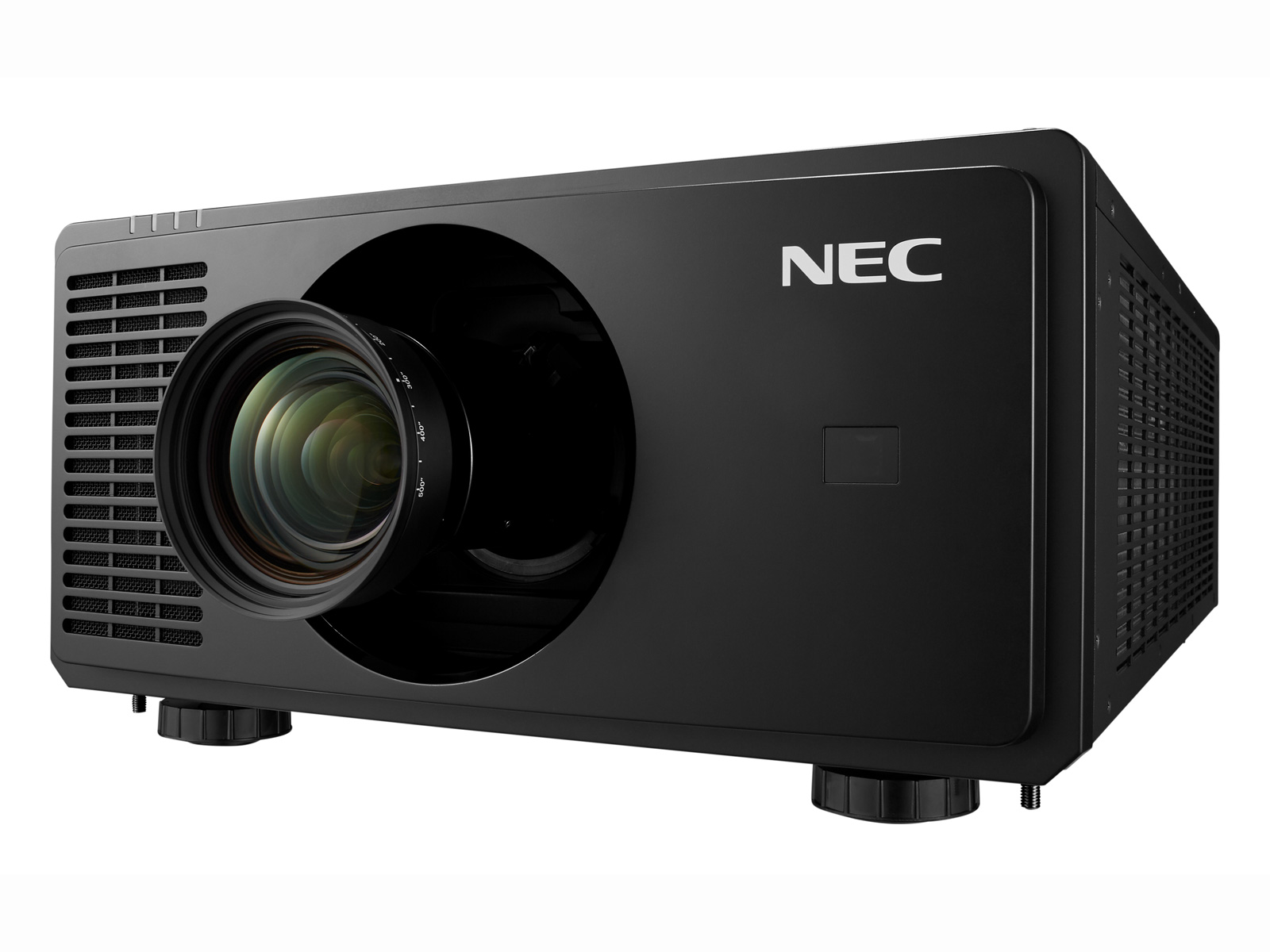

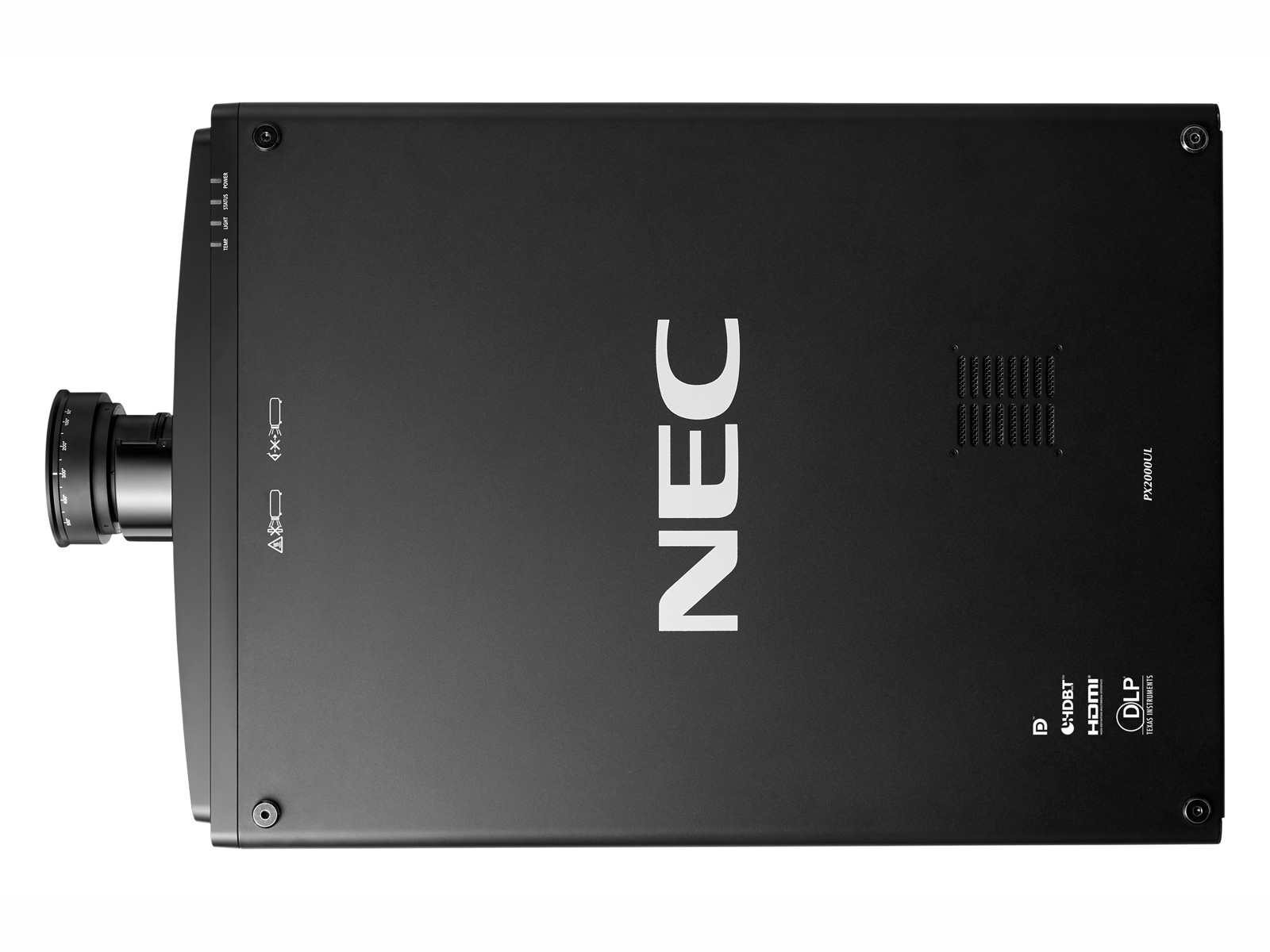

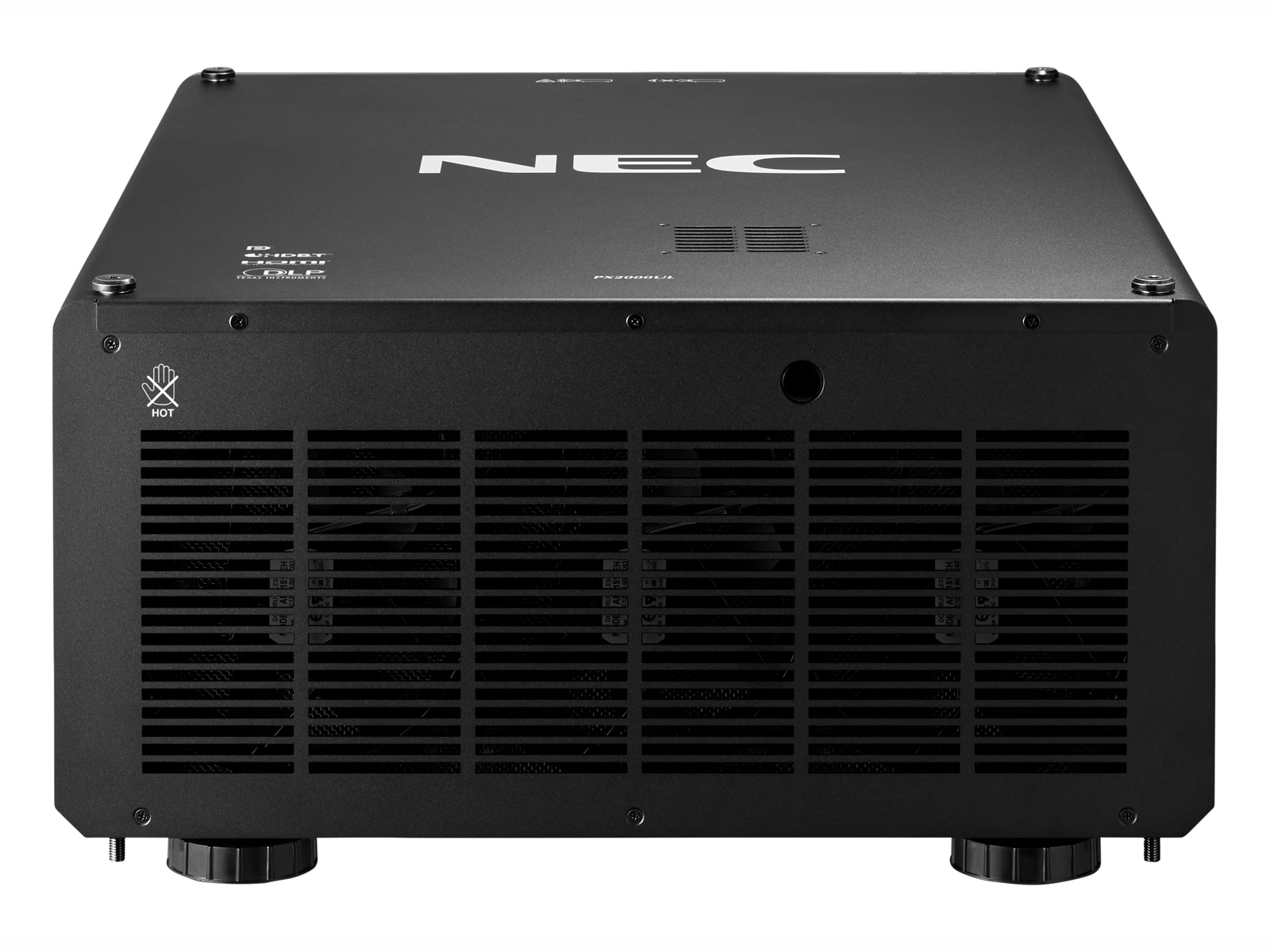

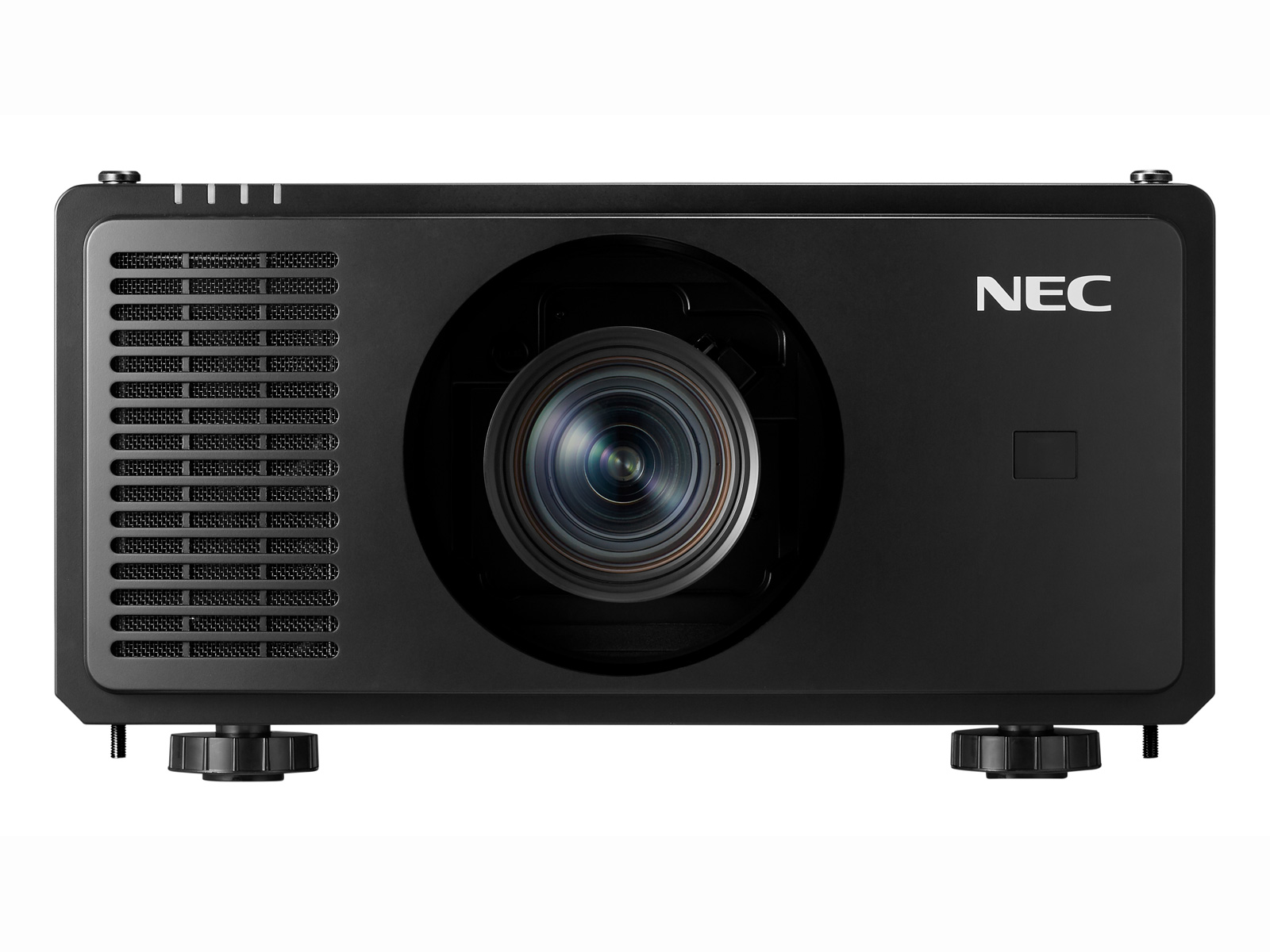

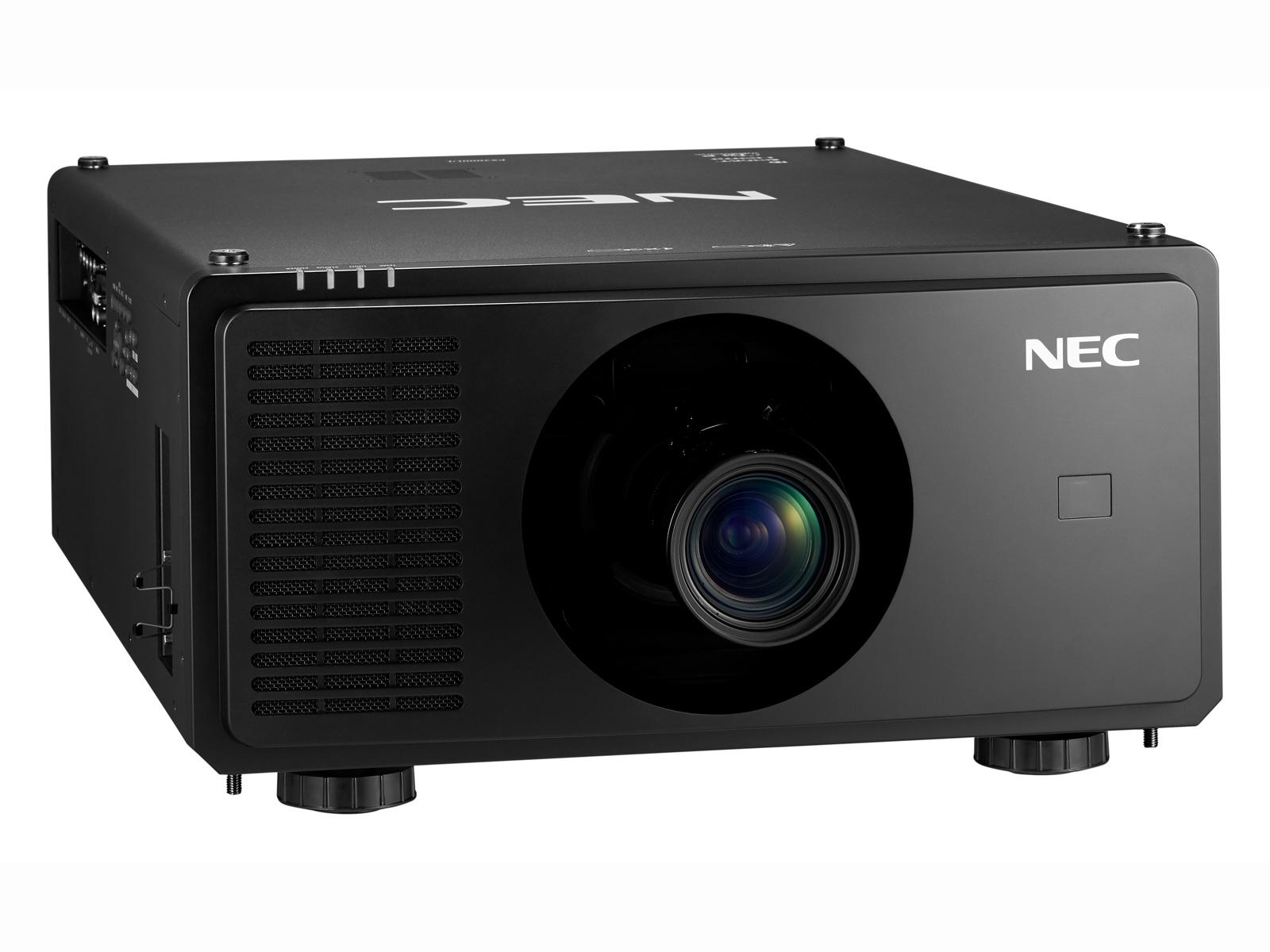

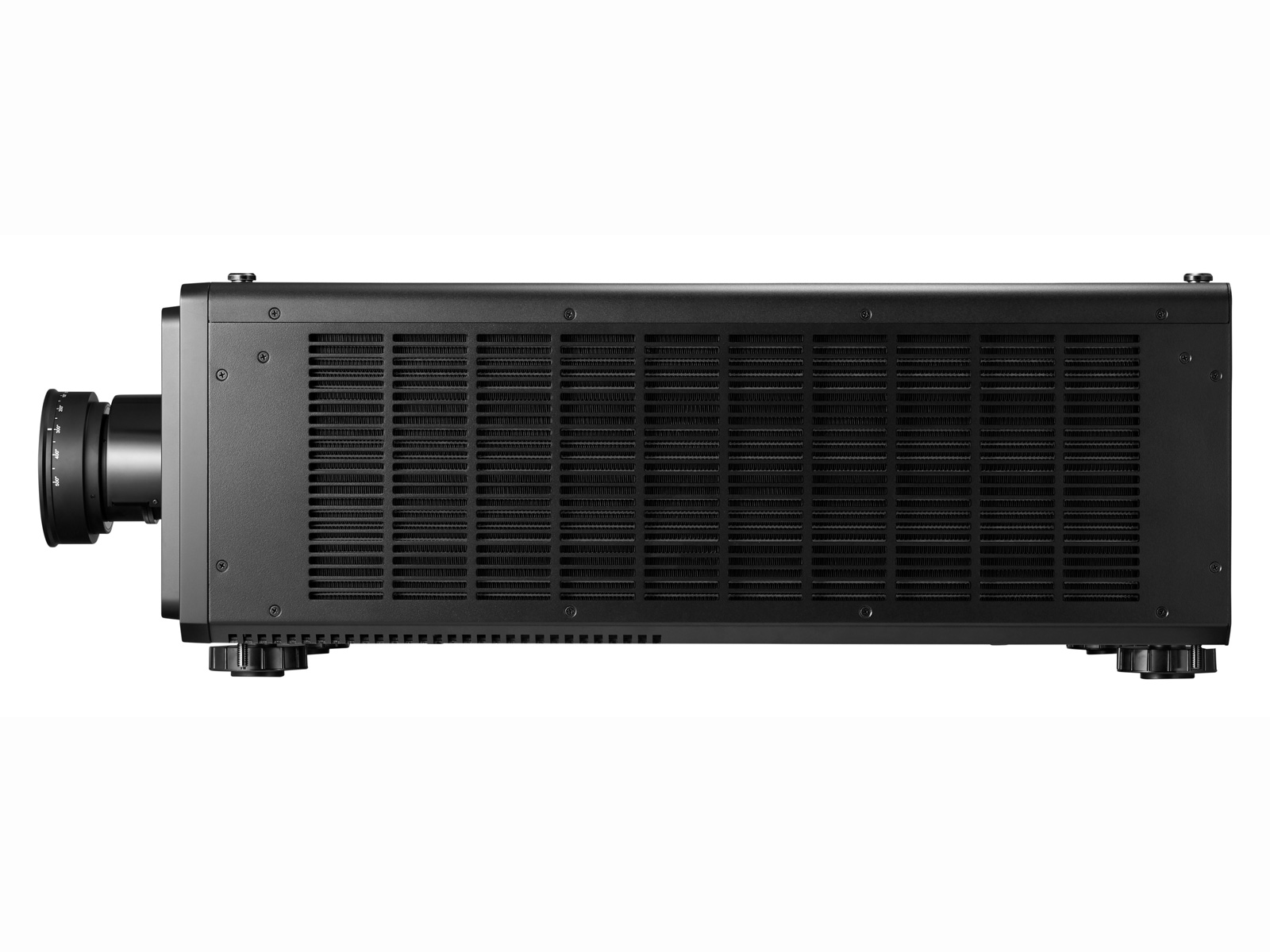

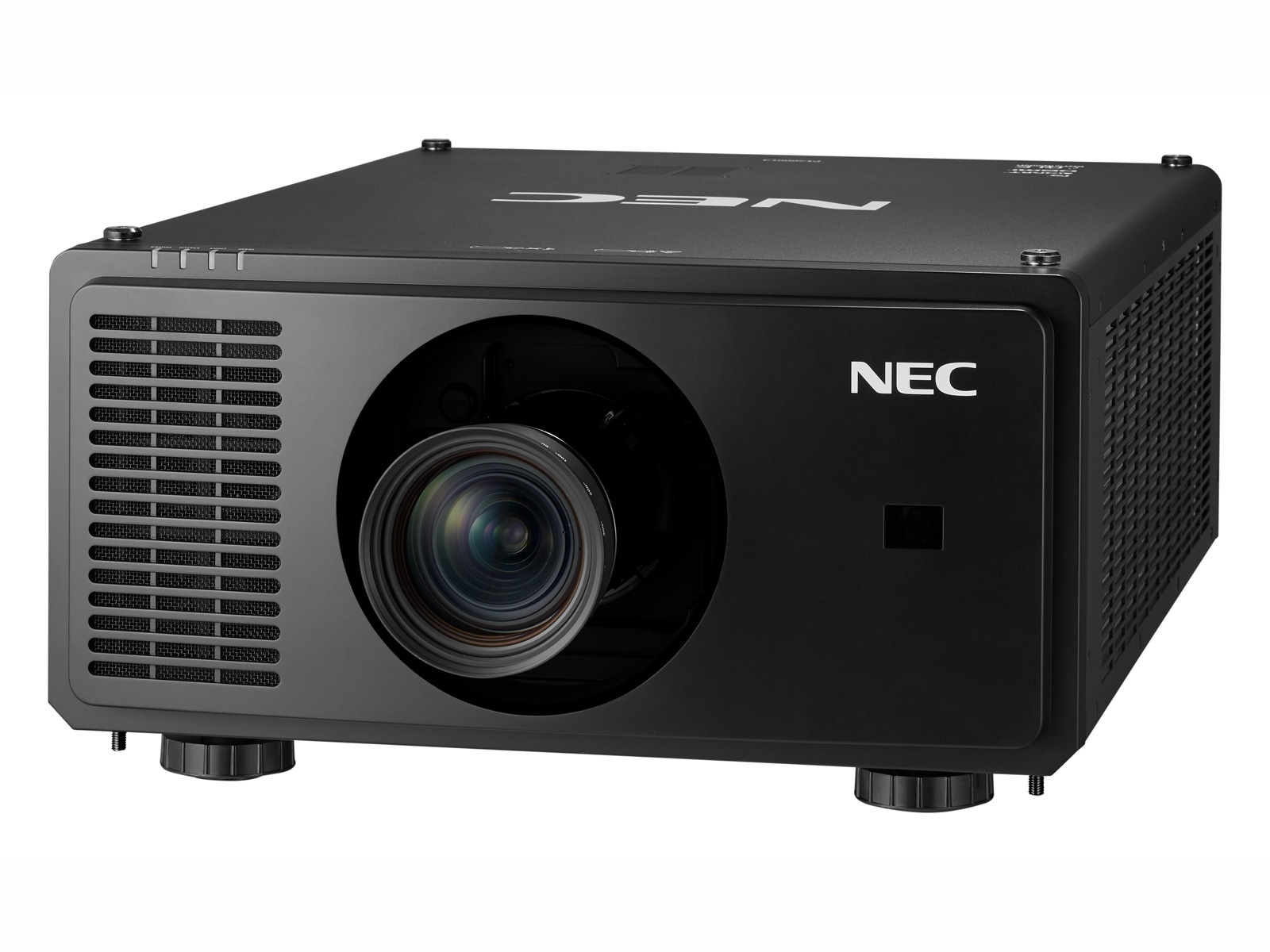

Experiencing an attractive price/performance ratio and low maintenance, the single chip 20,000 lumen laser projector delivers large venue projection at near 3-chip imaging performance. Producing richly intense colours powered by additional red laser technology, far beyond that previously possible with 1-chip DLP technology, the PX2000UL achieves a wide colour spectrum covering REC709 standard.
The filter-free sealed optical system means no dust can impact the Constant Light Output ensuring impressive longevity and minimal maintenance. Combined with its low fan noise, light weight for easy handling and outstanding installation and setup features, this innovative projector targets applications in Higher Education, retail, transportation (rail stations), museums and amusements parks where large scale high bright imaging must be achieved to a budget.

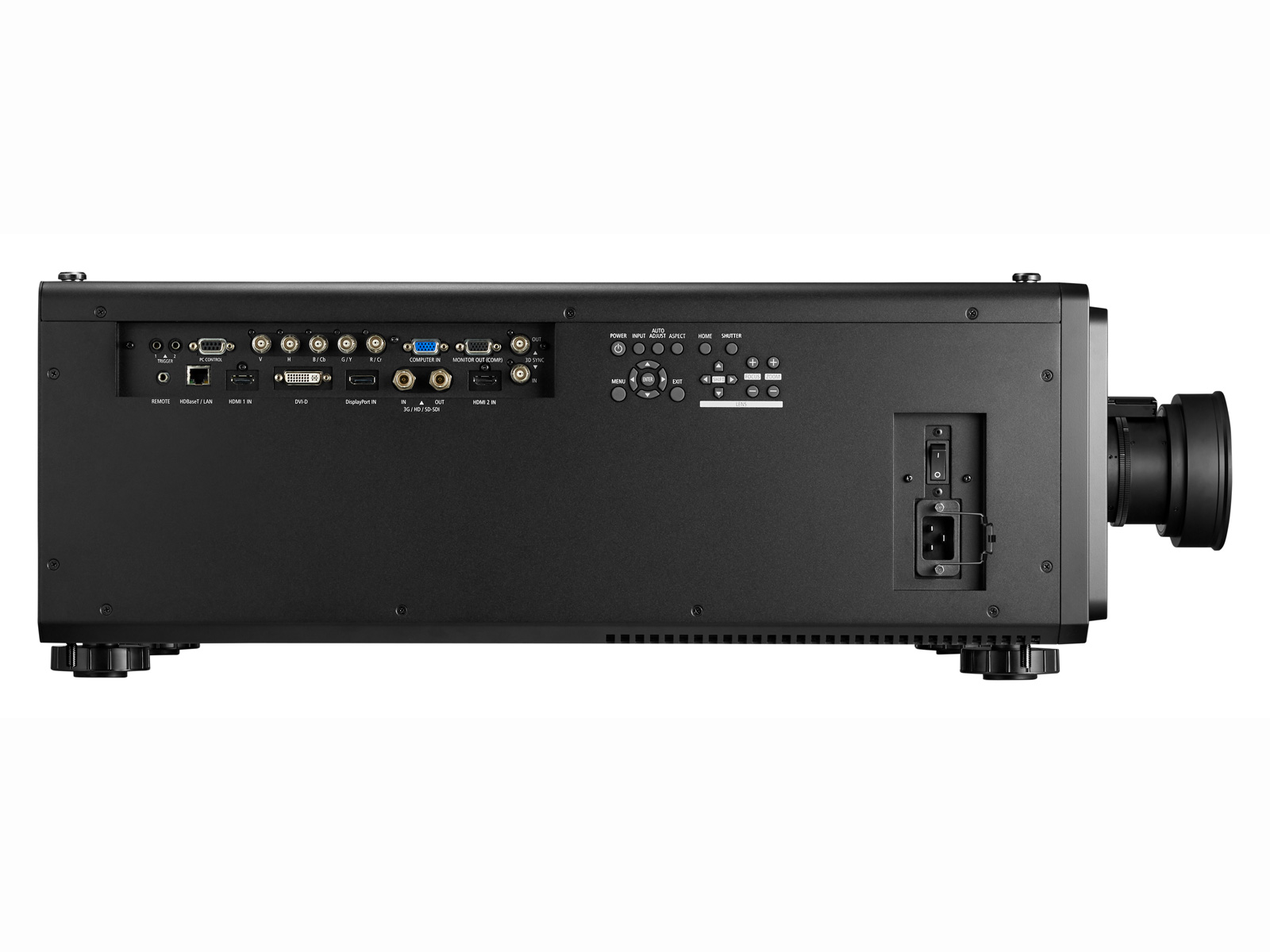

Input: 1 x 5BNC; 1 x Mini D-sub 15 pin Output: 1 x Mini D-sub 15 pin
Digital
Input: 1 x 3G-SDI; 1 x DisplayPort supporting HDCP; 1 x DVI-D; 1 x HDBaseT; 2 x HDMI™ supporting HDCP Output: 1 x 3G-SDI
Control
Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN
1 x RJ45
3D Sync
Output: 1 x BNC IN; 1 x BNC OUT
Video Signals
NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Input
1 x 3.5 mm Stereo Mini Jack
Output
2 x 3.5 mm Stereo Mini Jack for Screen Trigger
Remote Control
Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Electrical
Power Supply
200-240 V AC; 50 - 60 Hz
Power Consumption [W]
1779 Normal Mode
Mechanical
Dimensions (W x H x D) [mm]
530 x 248 x 745 (without lens and feet)
Weight [kg]
51
Fan Noise [dB (A)]
43 / 45 (Eco / Normal)
Colour Versions
Black
Environmental Conditions
Operating Temperature [°C]
0 to 40
Operating Humidity [%]
0 to 80
Ergonomics
Safety and Ergonomics
CE; EAC; ErP; RoHS
Additional Features
Special Characteristics
3D ready; DICOM simulation; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; LAN; Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; PJ LINK; Portrait Setting; RS-232 Control
Green Features
Energy Efficiency
Laser light source
Ecological Materials
100% recyclable packaging; Downloadable manuals
Ecological Standards
ErP compliant
Warranty
Projectors
3 years pan-European service
Light Source
3 years or 10000h (whatever comes first)
Shipping Content
Shipping Content
IR Remote Control (RD - 480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM
Optional Accessories
Optional Accessories
XpanD 3D Glasses (X105-RFX2); XpanD 3D RF Emitter (AD025-RF-X1)
