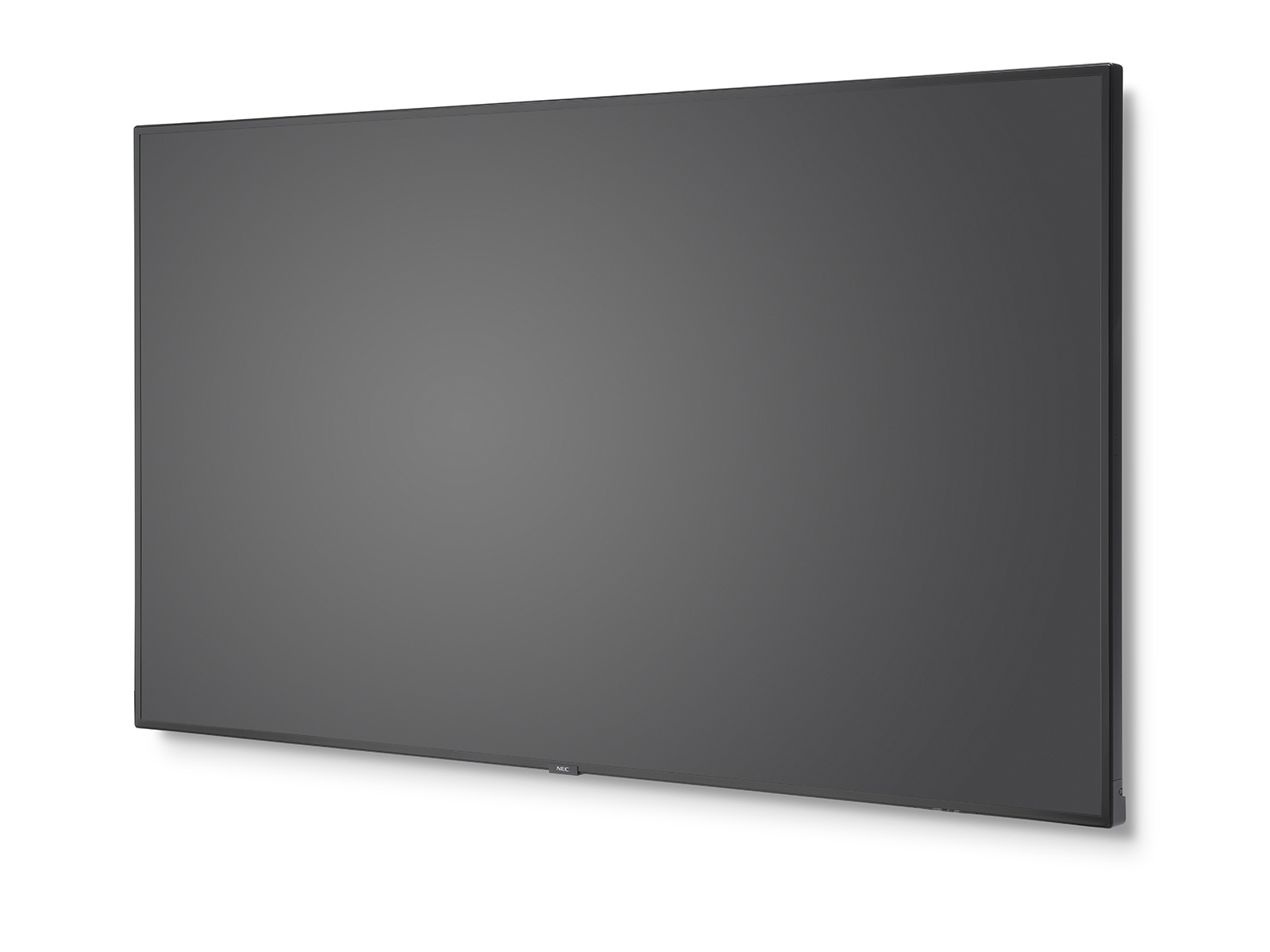

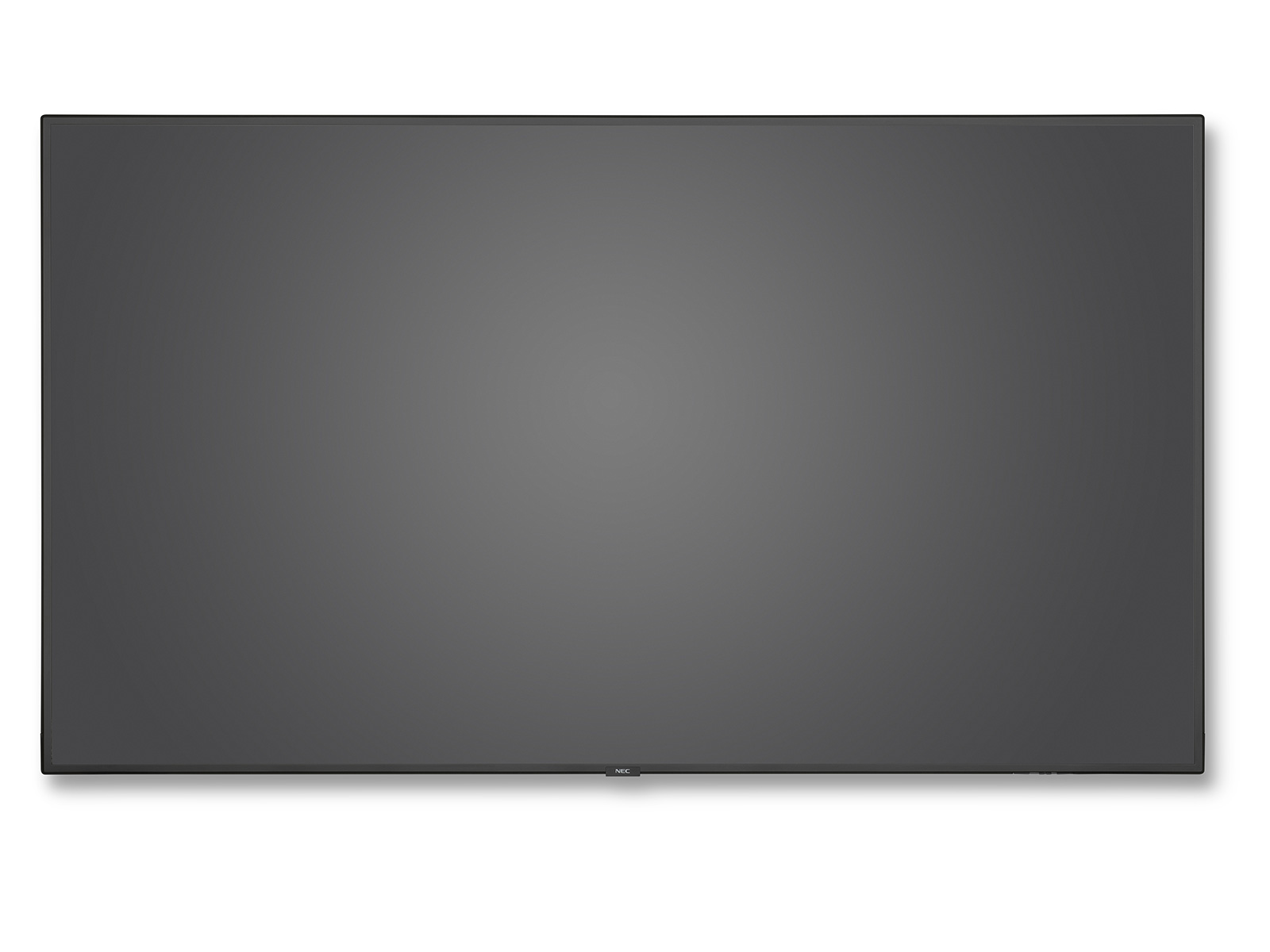

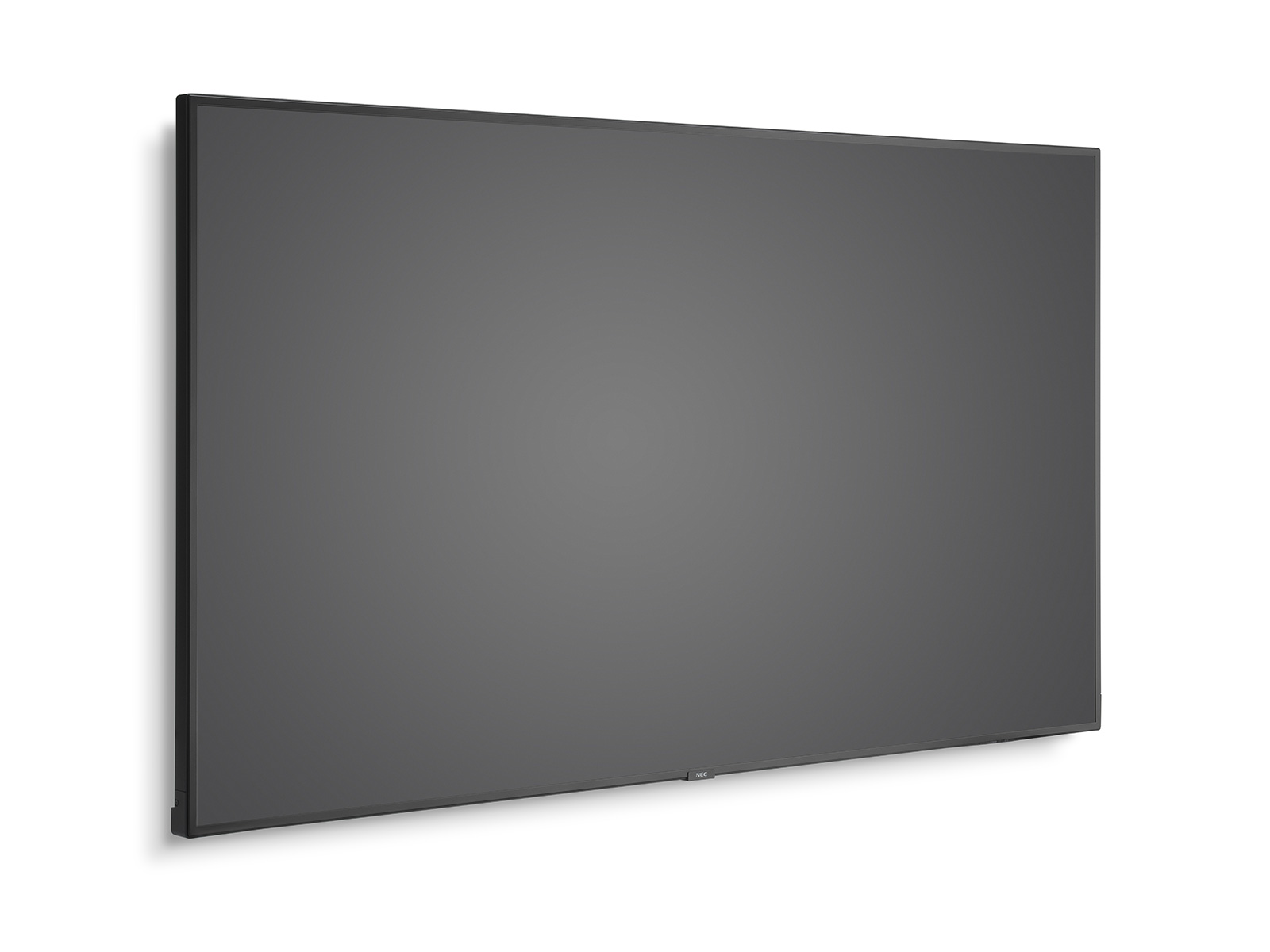

NEC MultiSync® C751Q
Stunning visibility for presentations and digital signage
Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership with long life-times.
Professional haze levels ensure great visibility without distracting reflections - along with brightness of up to 350 cd/m², the NEC MultiSync C Series meets the demands of today’s meeting environments. Slim bezels and a modern appearance complement state of the art architecture to integrate perfectly into interior designs. With embedded office functionalities, start up ad-hoc meetings without the hassle of setting up the display environment first. Wake-up on connection is just one of many features which make meetings more efficient.
With the NEC MultiSync C751Q, presenters will feel confident during meetings of up to 12 participants whilst retailers and hospitality facilities can boost sales through digital signage.
Display
Panel Technology
IPS with Edge LED backlights
Active Screen Area (W x H) [mm]
1,649.7 x 927.9
Screen Size [inch/cm]
75 / 189
Brightness [cd/m²]
350, 250 (shipment setting)
Contrast Ratio (typ.)
1200:1
Viewing Angle [°]
178 / 178 (at contrast ratio > 10:1)
Colour Depth [bn]
1.073 (10bit)
Response Time (typ.) [ms]
8 (grey-to-grey)
Haze Level [%]
Pro (28)

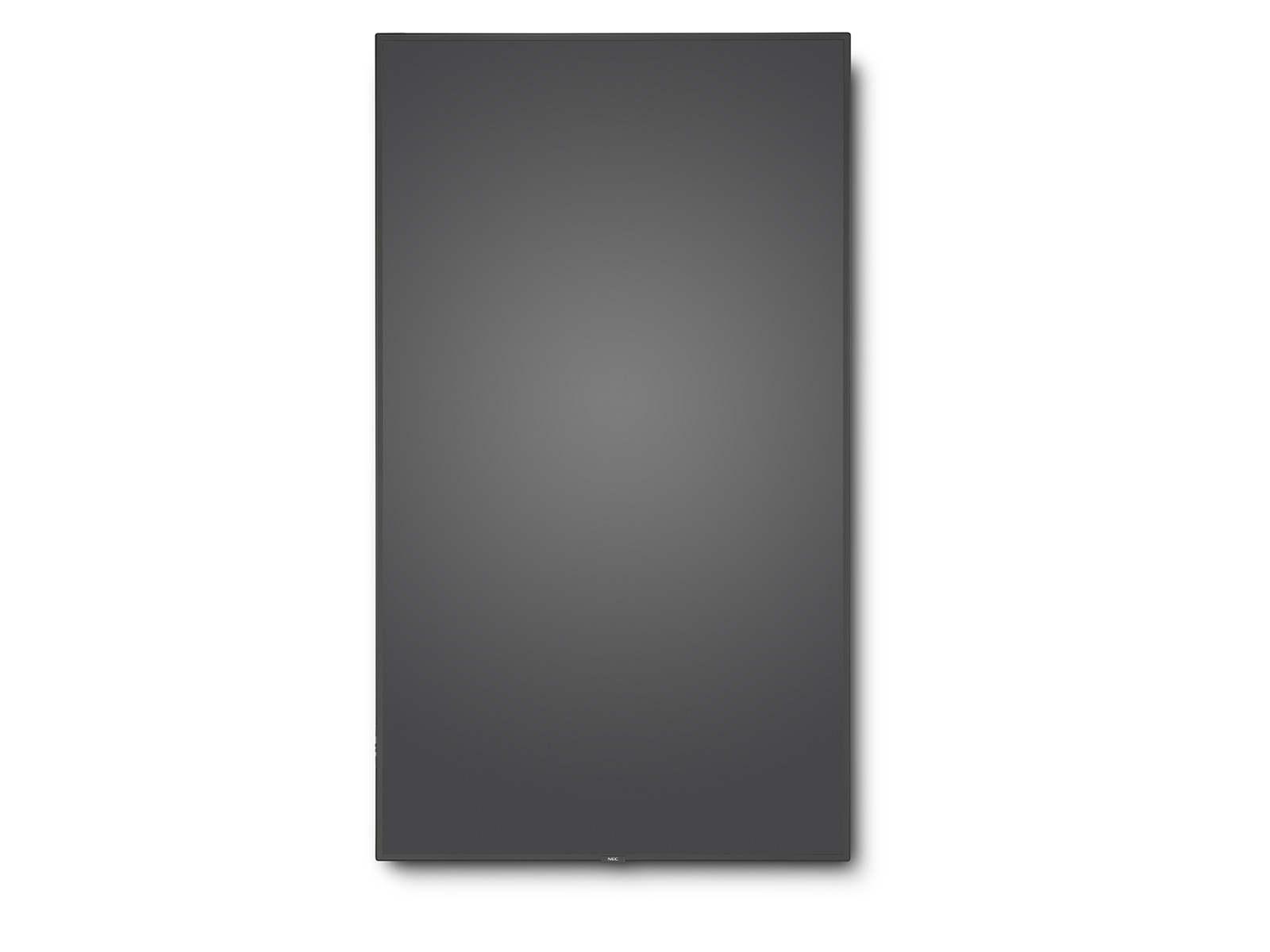

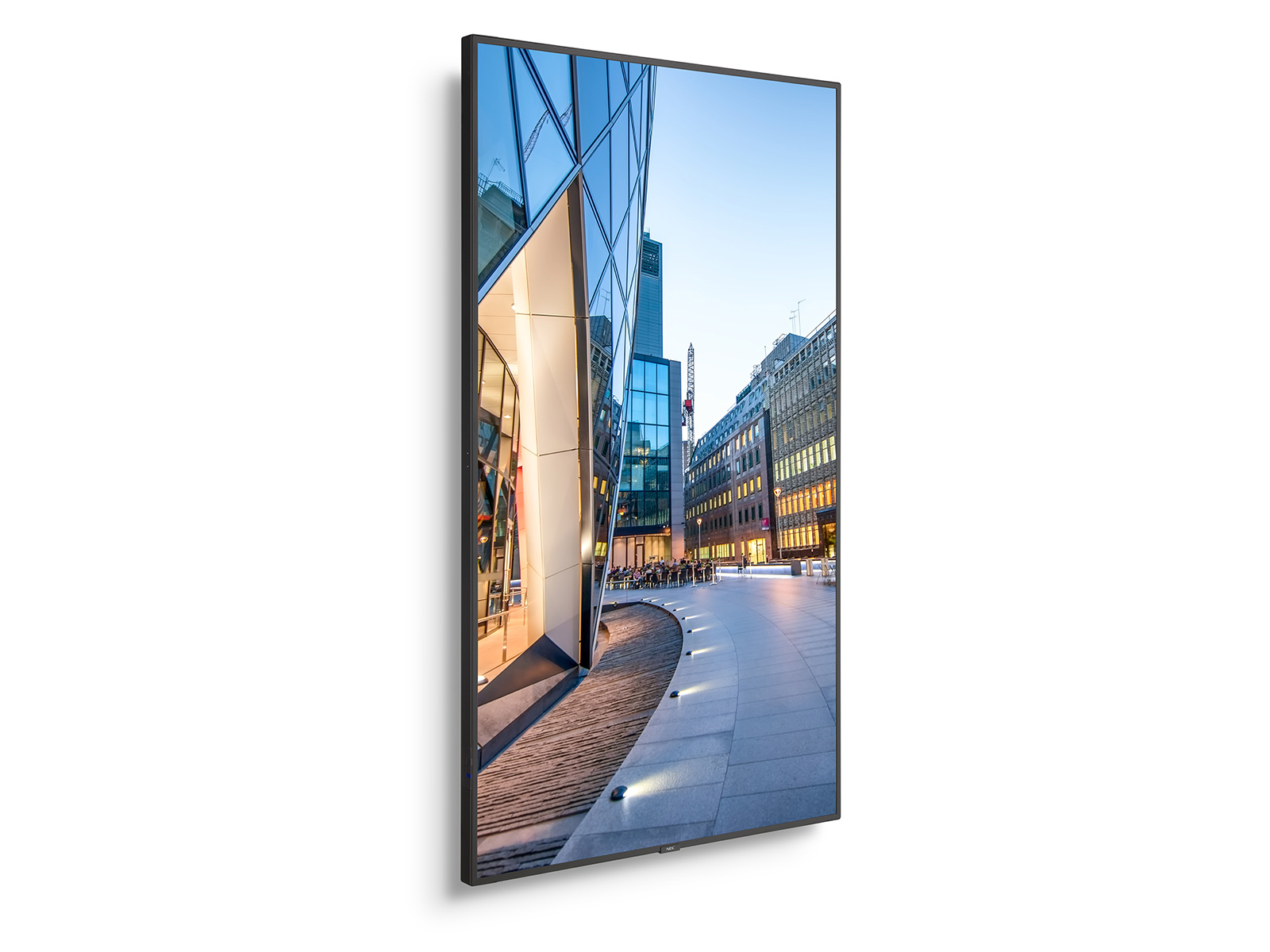

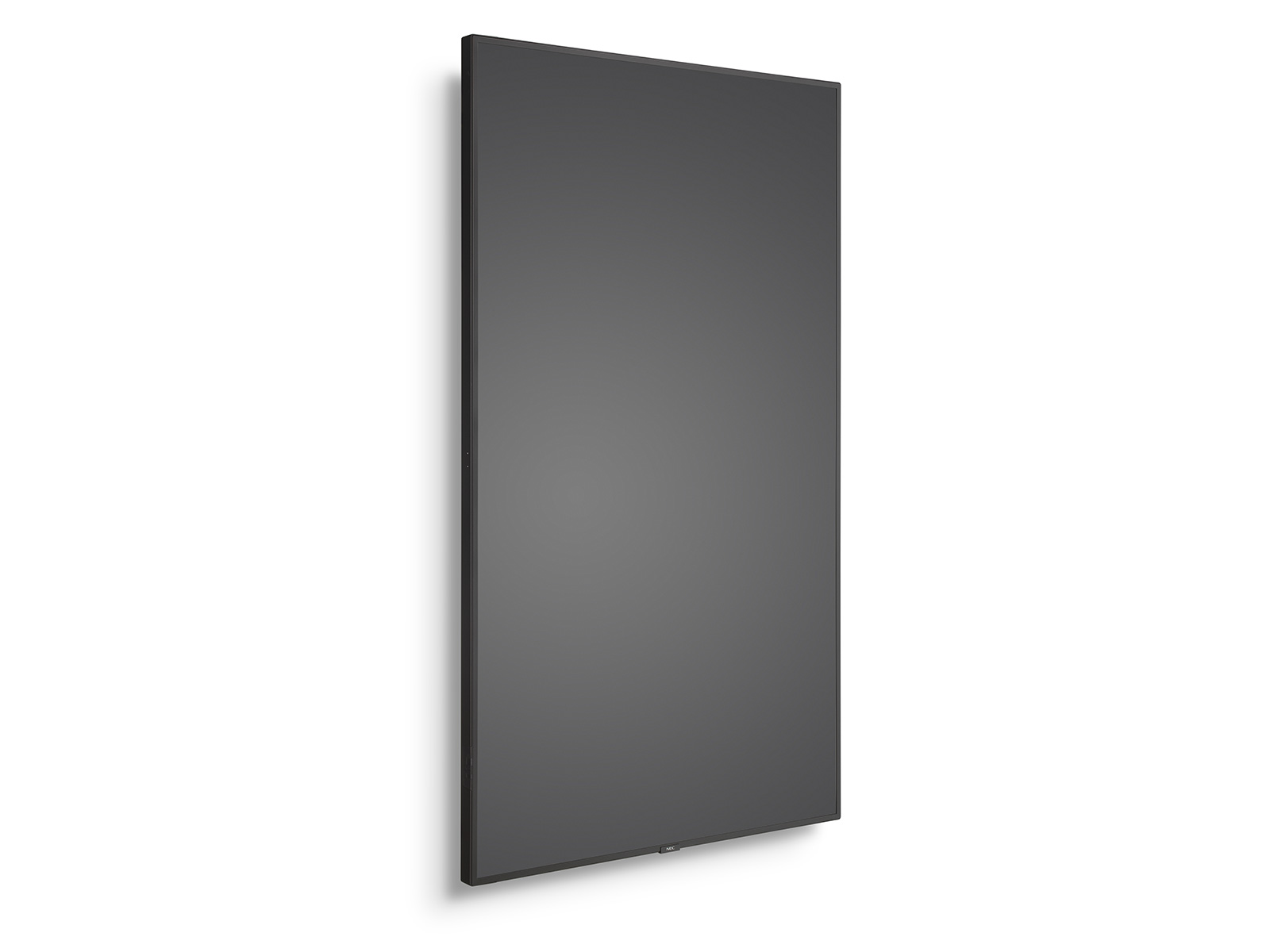

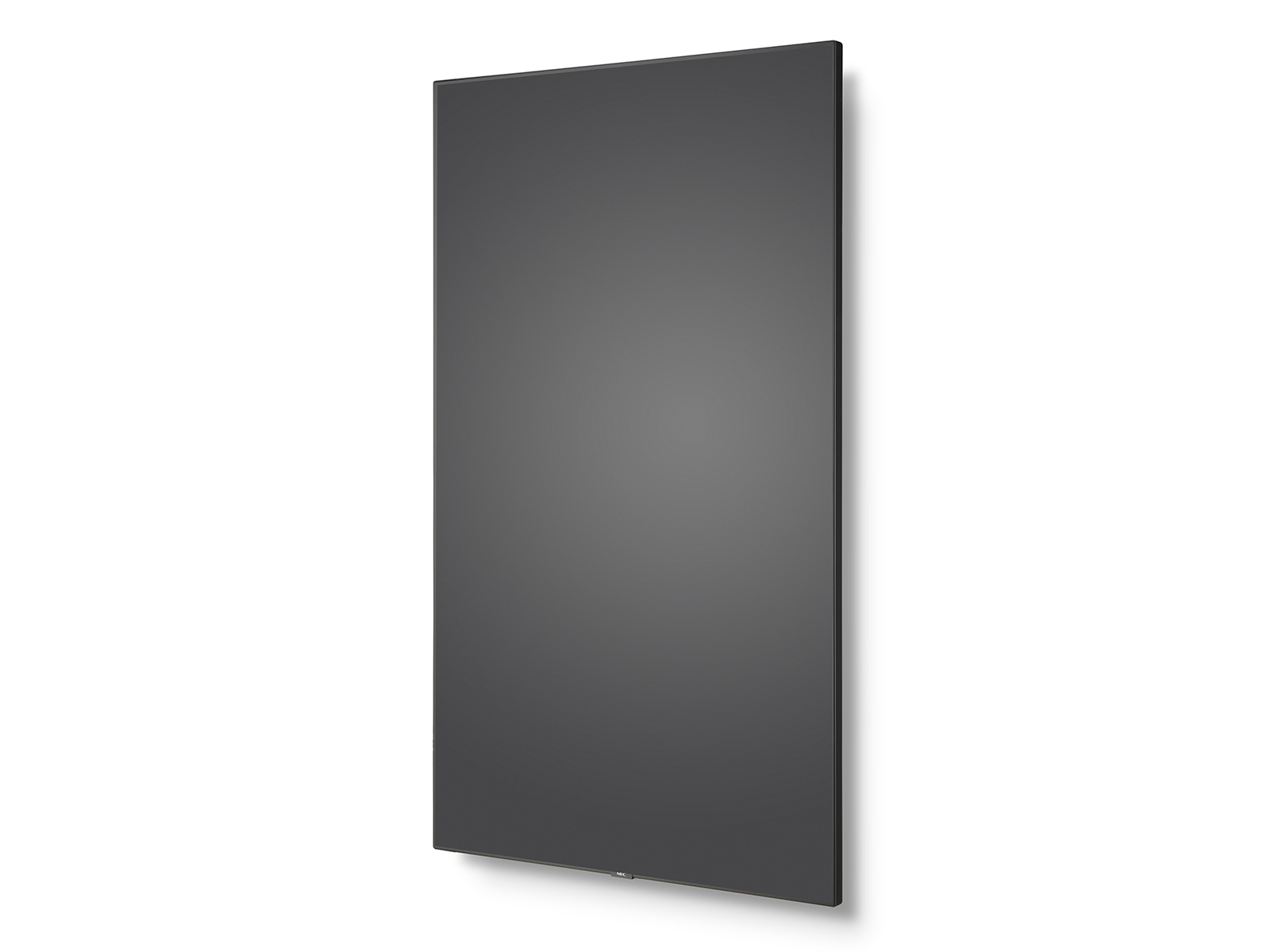

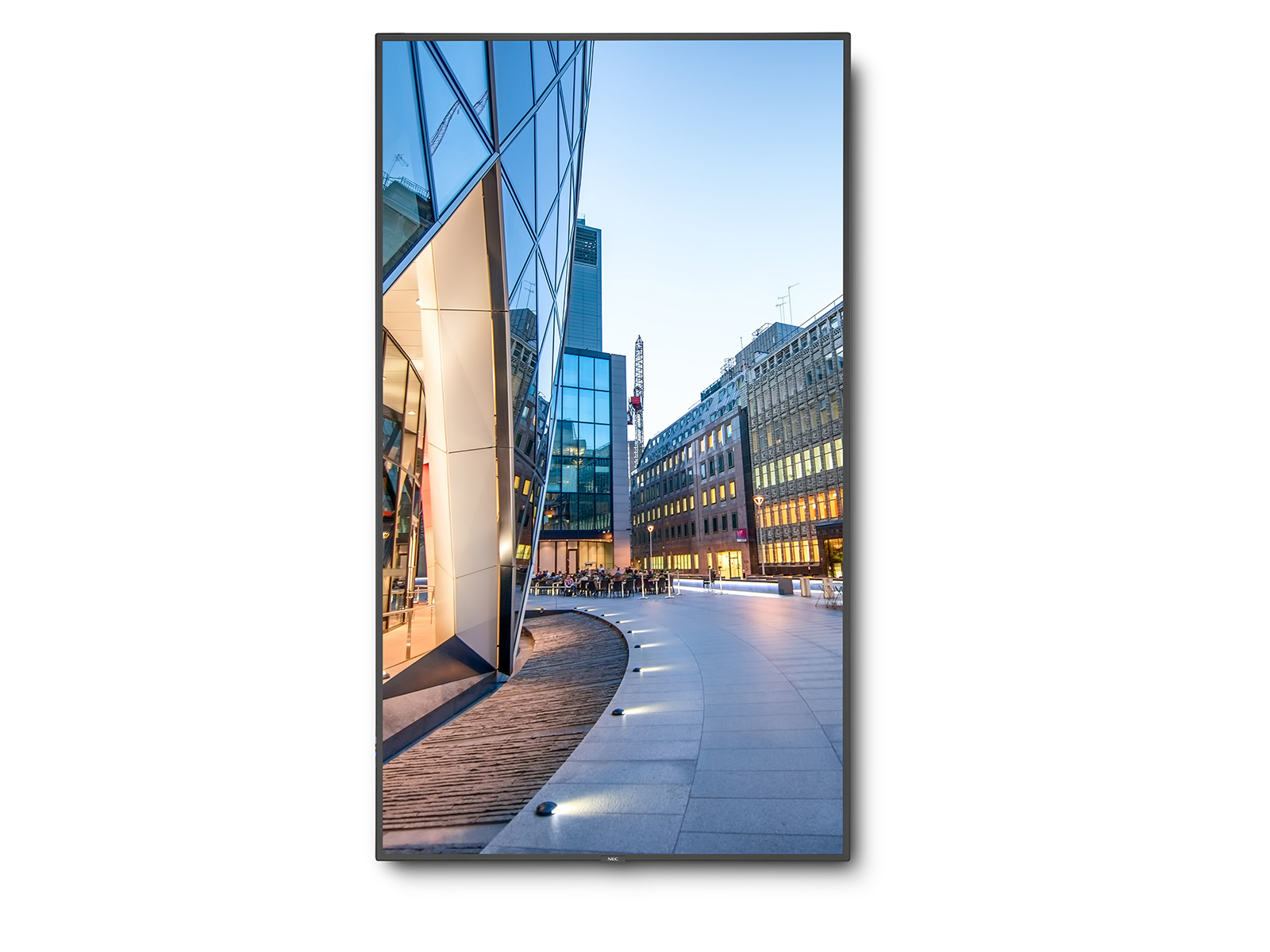

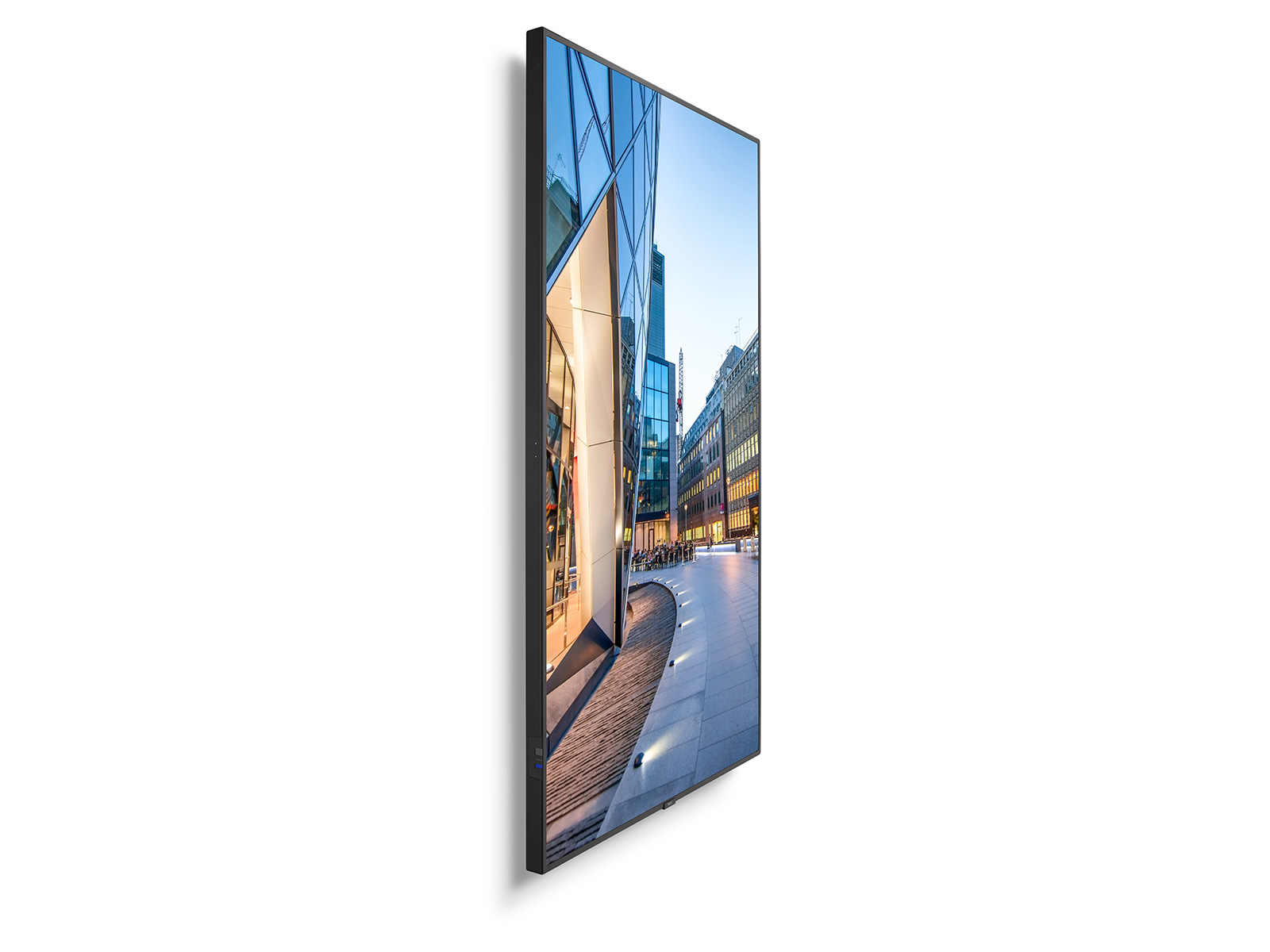

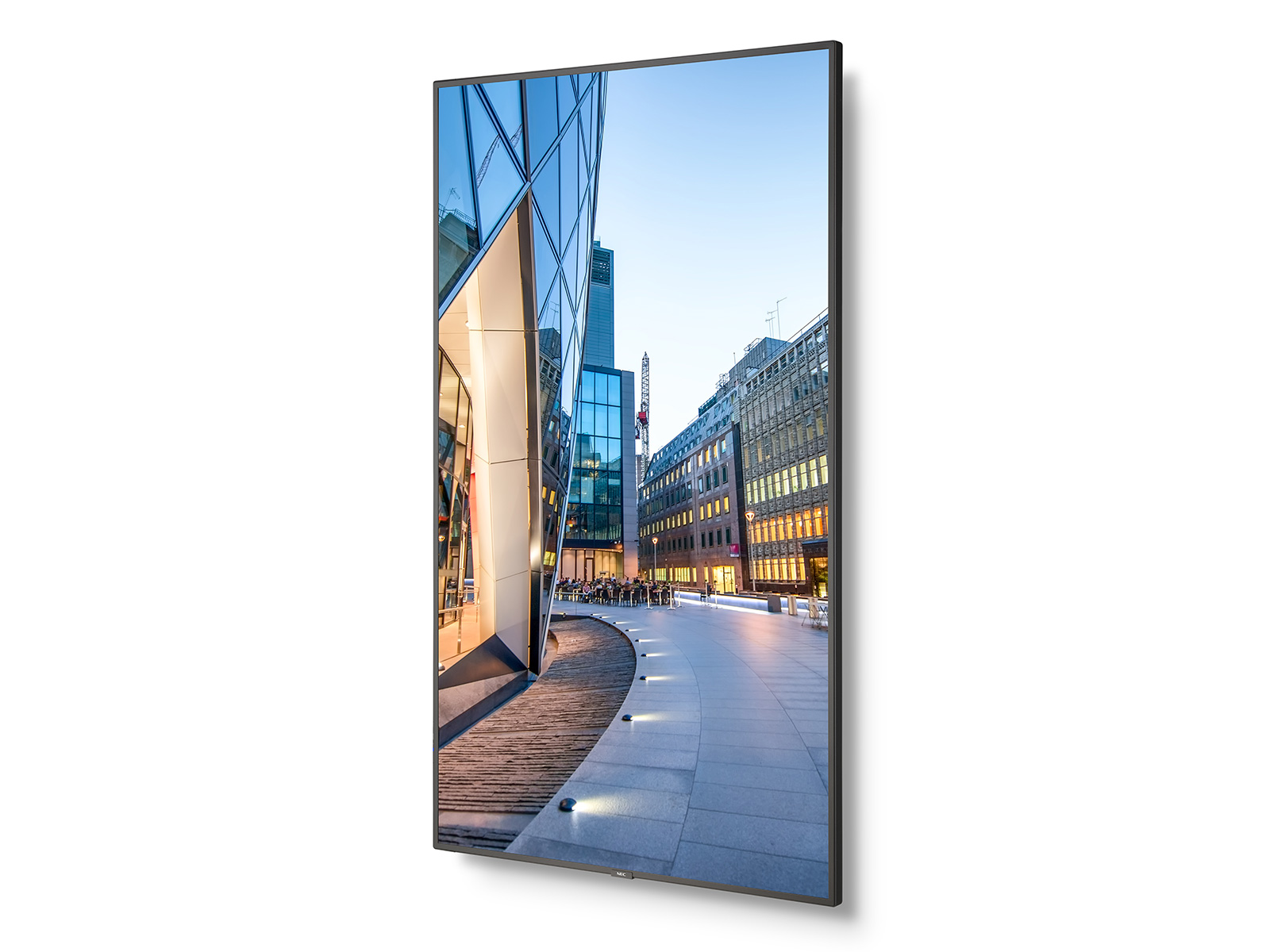

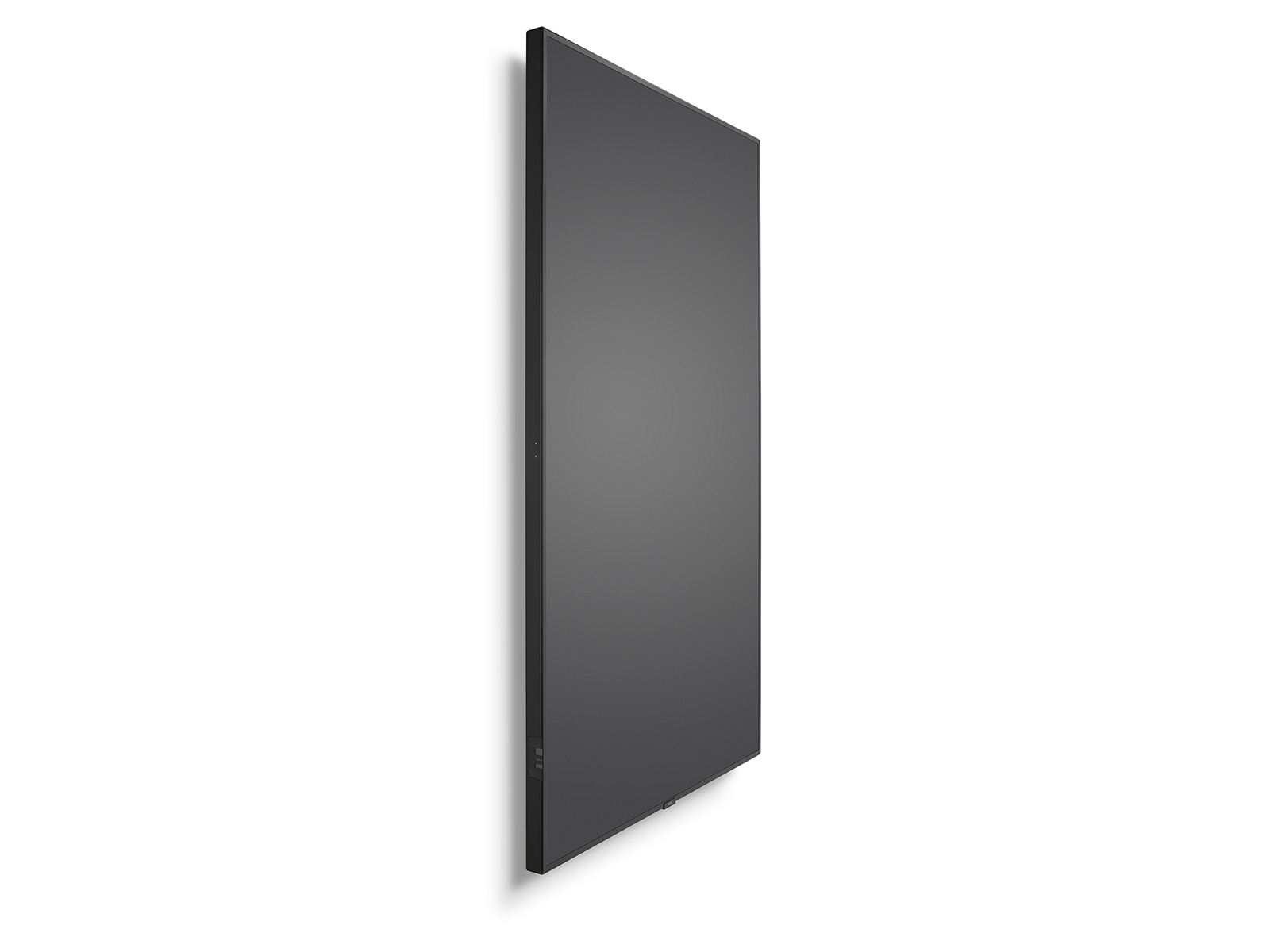

Supported Orientation
Landscape; Portrait
Resolution
Native Resolution
3840 x 2160
Supported Resolutions
1920 x 1080; 1920 x 2160; 3840 x 2160; 4096 x 2160
Synchronisation Rate
Horizontal Frequency [kHz]
31.5 - 91.1
Vertical Frequency [Hz]
24 - 85

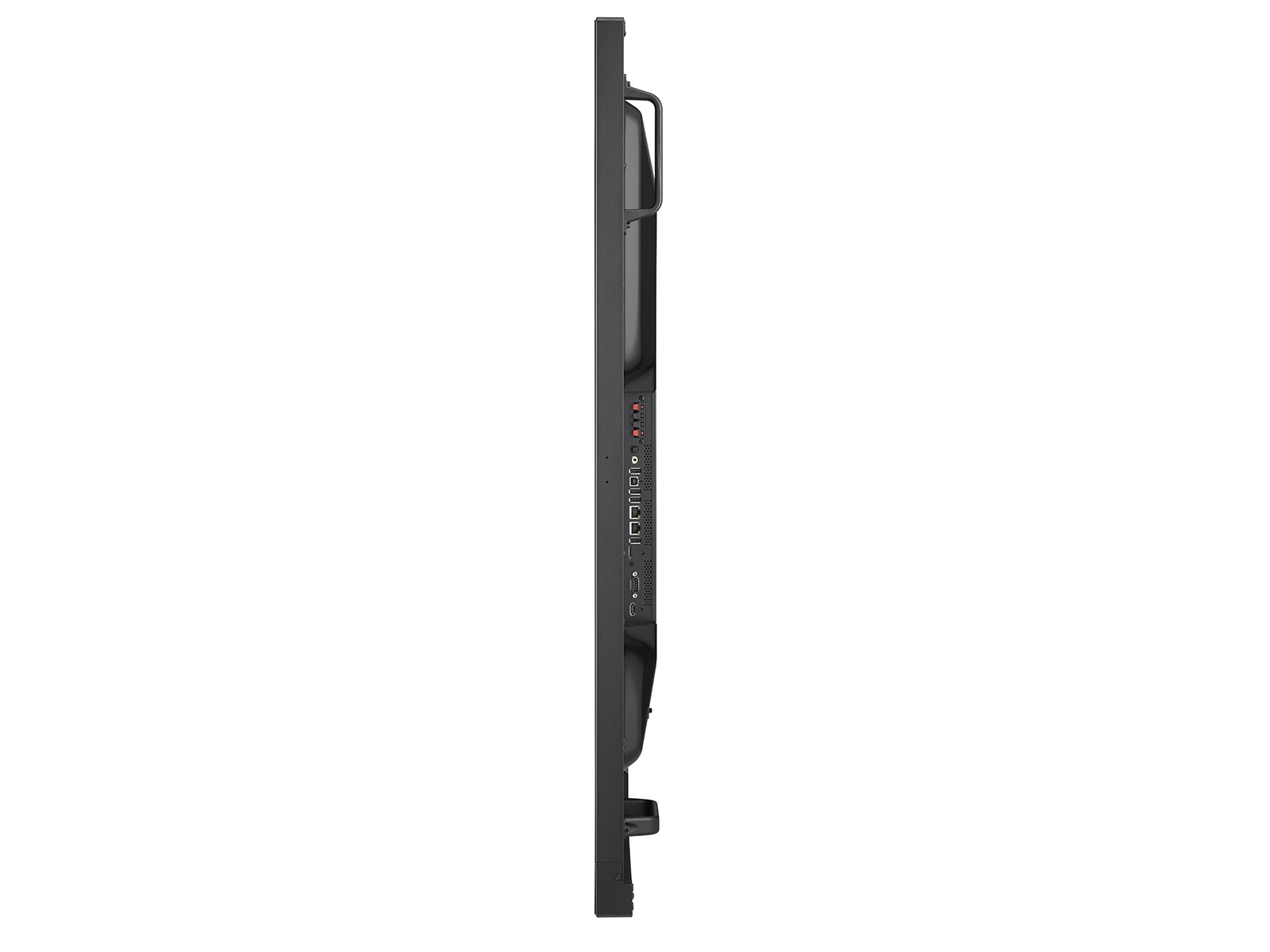

Connectivity
Input Video Digital
2 x DisplayPort (with HDCP); 3 x HDMI (with HDCP)
Input Audio Analogue
1 x 3,5 mm jack
Input Audio Digital
2 x DisplayPort; 3 x HDMI
Input Control
1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
Input Data
1 x microSD (MediaPlayer); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
Output Video Digital
1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
Output Audio Analogue
1 x 3,5 mm jack
Output Control
1 x LAN 100Mbit
Open Modular Intelligence
OPS Slot
Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W]
4.7 / 75
Compute Module Slot
Slot Technology: Compute Module 3 Slot (NEC proprietary standard)
Sensors
Ambient Light Sensor
Integrated, triggered actions programmable
Human Sensor
Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
NFC Sensor
Integrated, 2cm range, free NEC Android App required
Electrical
Power Consumption [W]
195 shipping
Power Savings Mode [W]
< 0.5; < 2 (Networked Standby)
Power Management
VESA DPMS
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Mechanical
Dimensions (W x H x D) [mm]
Without stand: 1,681 x 960 x 71
Weight [kg]
53
Bezel Width [mm]
14.8 (left and right); 14.8 (top and bottom)

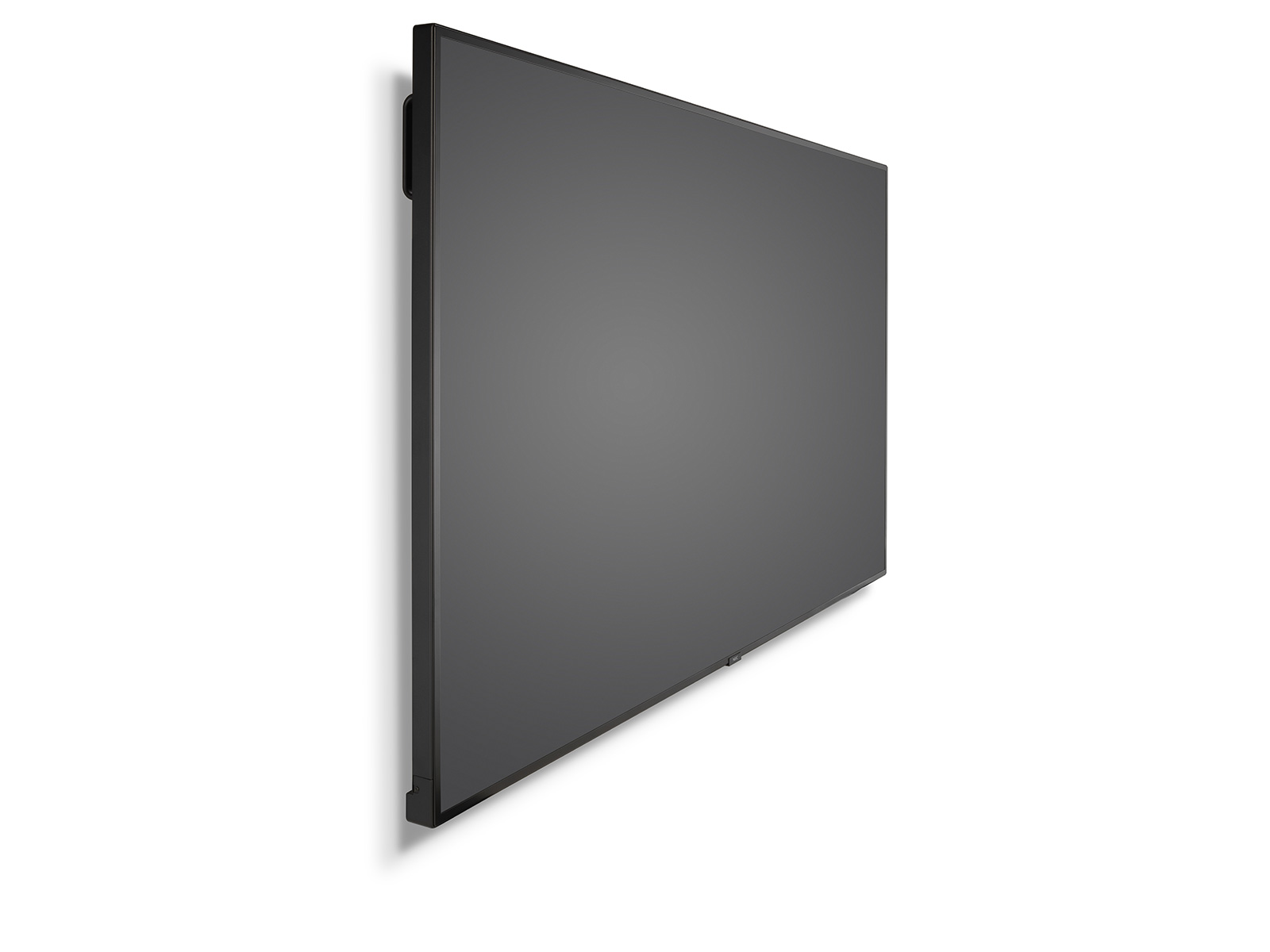

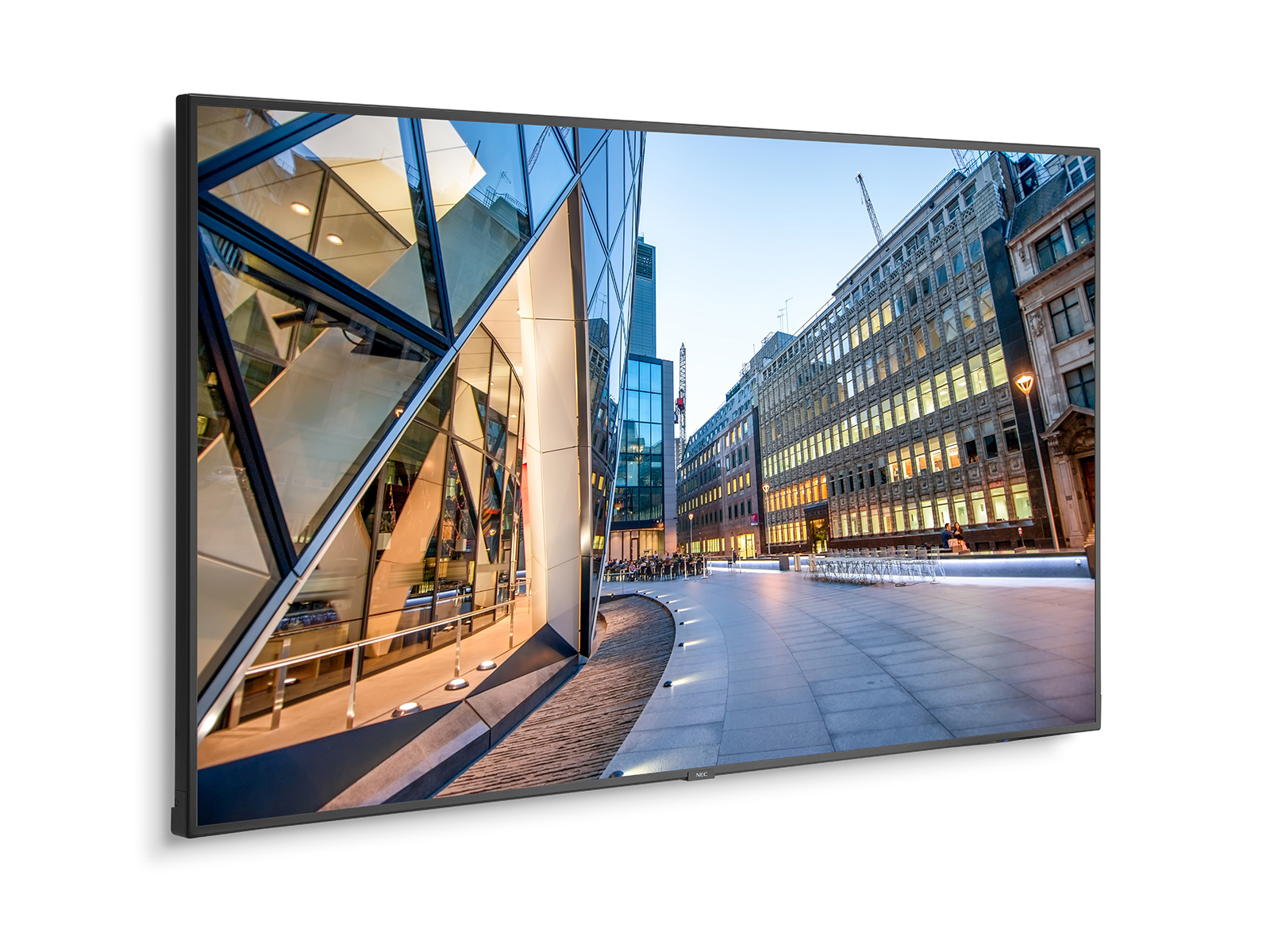

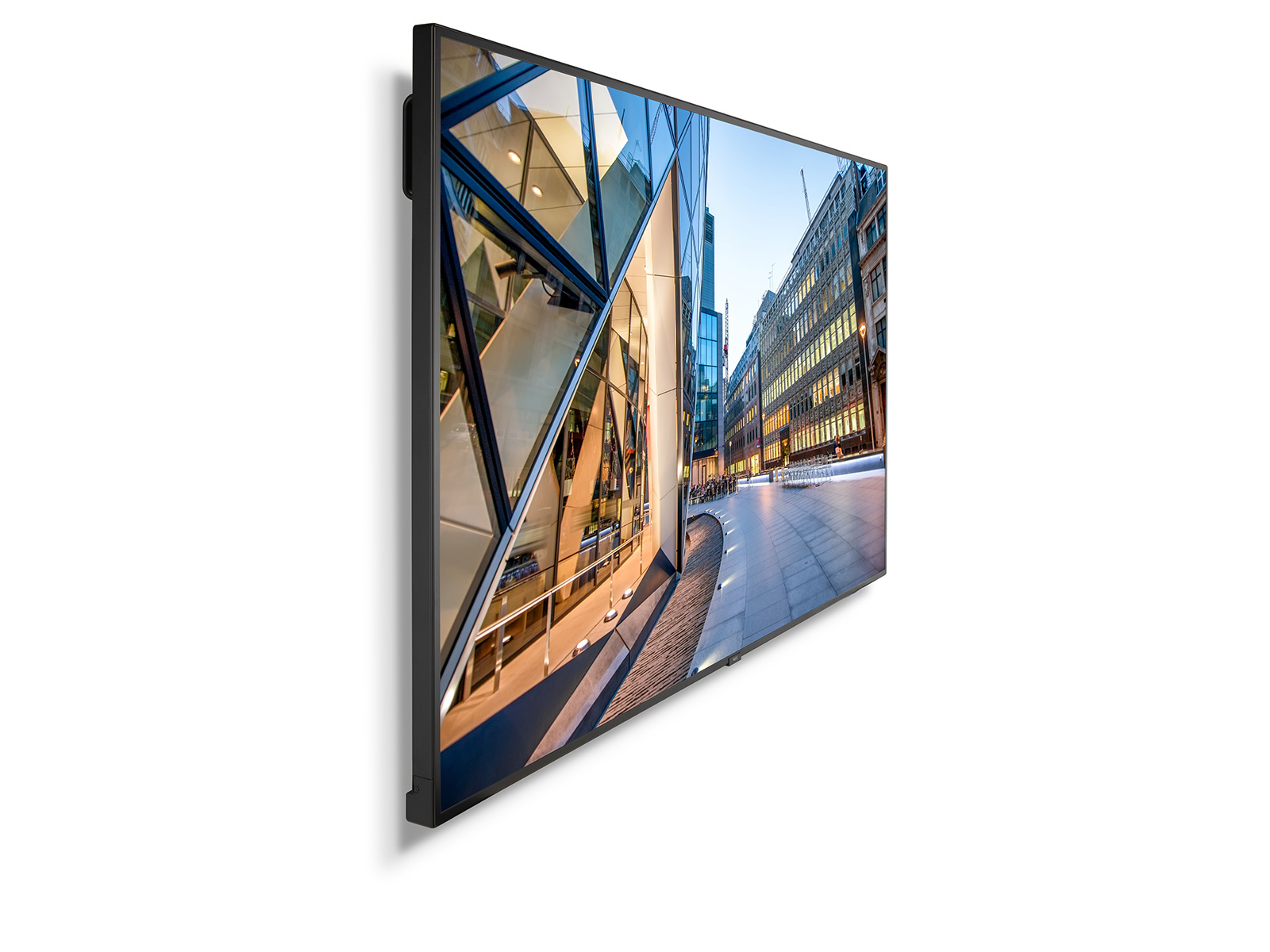

VESA Mounting [mm]
4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8
Ingress Protection
IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm]
1,830 x 1,190 x 280
Packaging Weight [kg]
65.5
Colour Bezel
Pantone 426M (black)
Material
Metal
MediaPlayer
Supported File Storage / File System
MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
Supported Image Formats
JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Supported Video Formats
MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Supported Audio Formats
MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
Available Options
Accessories

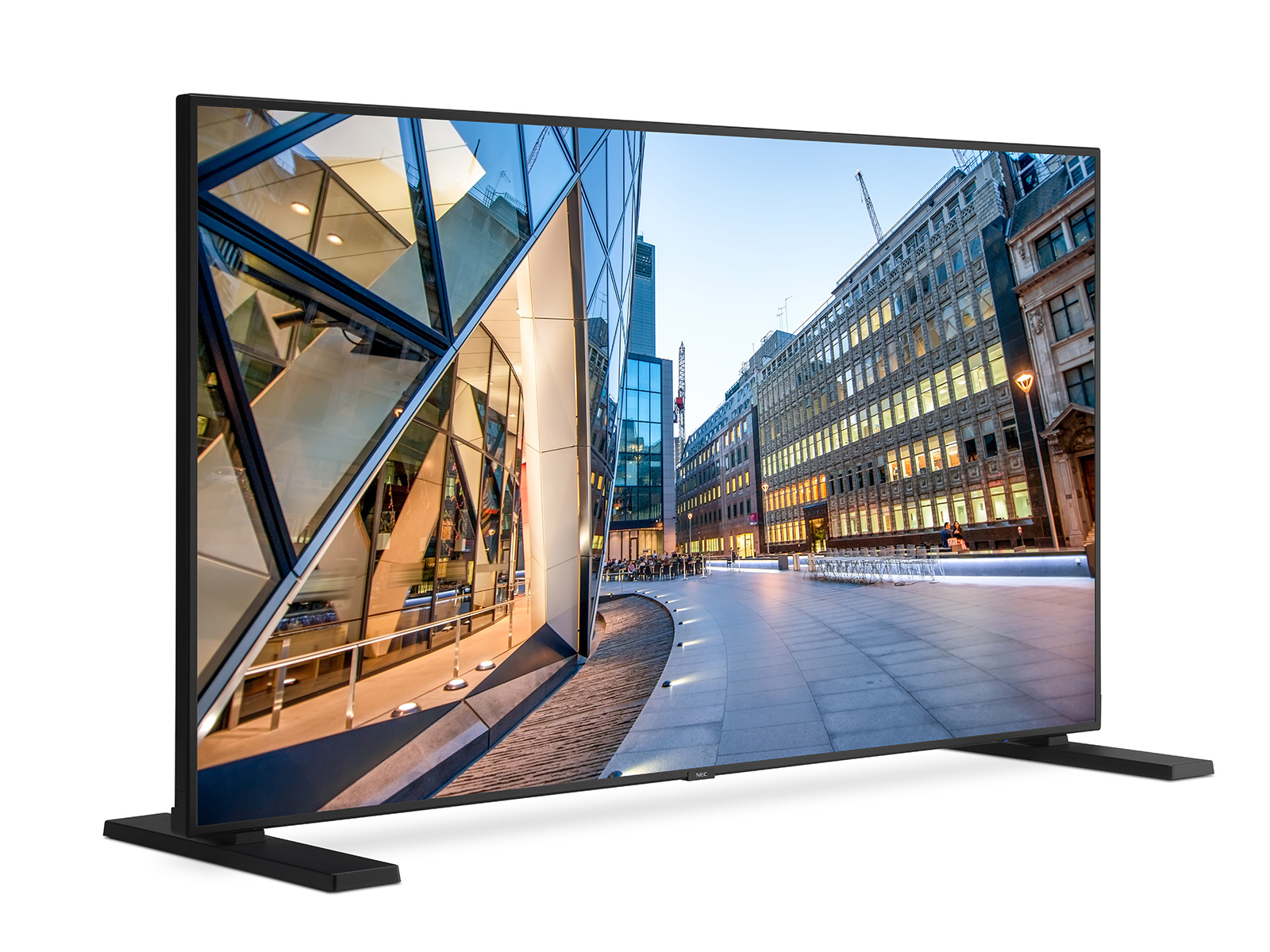

Feet (ST-801); Speaker (SP-754QSM, SP-TF1); Trolley (PD02MHA, PD03MHA, PDMHM-L); Wall mount (PDW T XL-2)
Compute Module Slot
NEC Compute Module; Raspberry Pi Compute Module 1 and 3
OPS Slot
HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; OPS-2C Quad 3G SDI
Regulatory
Safety and Ergonomics
CE; EAC; EMC Class B; FCC; SASO; TÜV GS; UL/C-UL or CSA; VCCI
Pixel Failure Class
ISO 9241-307, Class 1
Green Features
Energy Efficiency
Ambient light sensor; Carbon savings meter; ECOMode; Energy consumption: 165 kWh/1000 h; Energy efficiency class: G; Local dimming
Additional Features
Special Characteristics
12-bit Look Up table; Ambient Light Sensor; AMX NetLinx Support; ASCII Control Commands; Auto ID assignment; Auto tiling function; Automated Email Alert; CEC Support; Cisco Webex Kit compatible; Crestron Connected Support; DICOM Simulation; Display Browser Control; Emergency Notification; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); KeyGuide; MediaPlayer with Browser Control; NaViSet Administrator 2 - free download; OmniColor Control; OSD rotation for portrait mode; PIN as theft protection; PJLink Support; Powered USB-Port; Removable Logo; Scheduler; Slim LED Indicator; SNMP Support; TileMatrix (10 x 10); User readable log function
Colour Versions
optional coloured overframes
Audio
Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
Shipping Content
CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Remote Control; USB cable
Warranty
3 years warranty incl. backlight; optional 4. + 5. year warranty extension 1
Operating Hours
24/7
1 please refer to terms and conditions of warranty extensions
