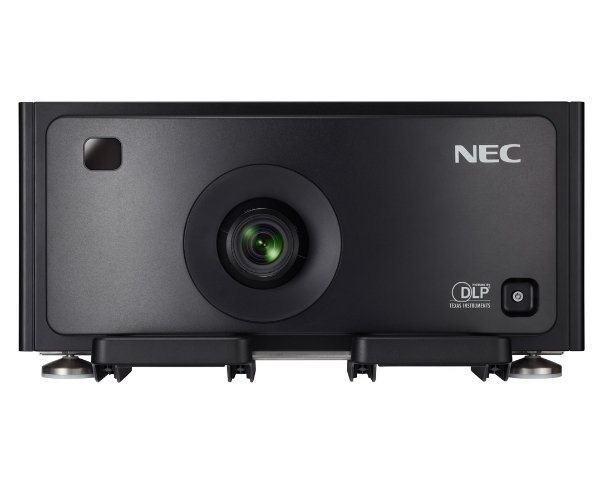

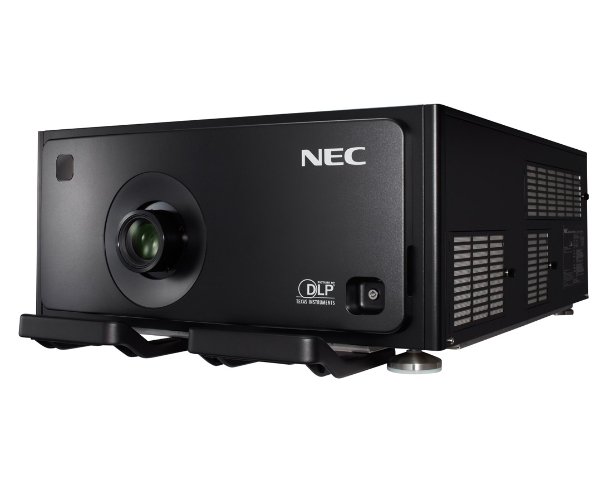

NEC's new bright NEC PH1202HL, a 3DLP Laser Installation Projector delivers all the benefits associated with the latest laser light source. With no lamp replacement necessary, maintenance is not required and longevity is assured. Achieving an outstanding colour gamut and supreme image detail at high resolutions, laser is the light source of the future.
Addressing the demanding large venue environment, the new NEC PH1202HL presents high brightness, Super Dust Protection and professional installation features for superior projection performance within Rental/Staging, Higher Education, Museums, large Corporates and Signage installations.
Benefits
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
- Easy way to a big picture – up to 4K interface, HDMI-out signal loop through, built-in signal splitter and edge blending capability enables large presentation pictures without any external devices. PiP function allows additional sources to be displayed.
- Outstanding Picture Quality – whole new visualisation experience with high brightness, up to 4k input signal and unique picture & colour processing technology based on the latest scaler chip.
- Widest application support – portrait mode projection, 360 degree free tilt installation, unique geometric adjustment and 3D support offers unrivalled installation capability.
- Super Dust Protection – NEC's patented heat exchanger and the completely sealed optical engine offer continuously best performance in harsh Rental/Staging environment.
Specifications
Product Information
Product Name
NEC PH1202HL
Product Group
Laser Projector
Order Code
60003902
Projection Technology
3-chip DLP™ Technology
Native Resolution
1920 x 1080 (1080p)
Contrast Ratio
10000:1
Brightness
12000 Lumen, with std. optional lense
Lamp
Laser Light Source
Light Source Life [hrs]
20000 1; 30000 in long-life mode
Lens
6 optional bayonet lenses
Projection Factor
depending on lens selection
Projection Distance [m]
1.4 – 74.7
Screen Size (diagonal) [cm] / [inch]
Maximum: 1,524 / 600"; Minimum: 152 / 60"
Zoom
Motorized
Focus Adjustment
Motorized
Supported Resolutions
1080i/50/60; 1080p/24/25/30/50/60; 1920x1200 (WUXGA) - 640x480 (VGA); 2048 x 1080 (2k); 2560 x 1600 (WQXGA); 4096 x 2160 (4k); 480i/50; 480p/60; 576i/50; 576p/50; 720p/50; 720p/60
Frequency
Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 24-120 Hz
Connectivity
RGB (analog)
Input: 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15 pin
Digital
Input: 1 x DisplayPort supporting HDCP; 1 x HDBaseT; 1 x HDMI™ supporting HDCP
Output: 1 x HDMI supporting HDCP
Output: 1 x HDMI supporting HDCP
Video
Input: 1 x BNC R Share
S-Video
Input: 1 x BNC G/B Share
Control
Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet; 1 x Ethernet shared with HDBaseT
Option Slot
Input: 1 x Slot for optional OPS modules
USB
1 x Type A (USB 2.0 high speed for mouse support)
3D Sync
Output: 1 x Mini DIN 3pin
Video Signals
NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Remote Control
Input
1 x 3.5 mm Stereo Mini Jack
Remote Control
Auto Adjust; AV Mute; Direct Info; Direct Source Select; Eco Mode Control; Freeze-function; Full Lense control; Geometric Correction; Help-function; ID Select; Illuminated Buttons; Input Control; Keystone Correction; Magnify-function; On Screen On/Off Selection; Picture Adjust; PIP Function; Power (On-OFF); Select (up, down, left, right); Shutter function; Test Picture; Wired / Wireless Connection
Electrical
Power Supply
200-240 V AC; 50 - 60 Hz
Power Consumption [W]
1392 Normal Mode; 752 Eco Mode
Mechanical
Dimensions (W x H x D) [mm]
680 x 333 x 860 (without lens and feet)
Weight [kg]
68
Fan Noise [dB (A)]
43 / 47 (Eco / Normal)
Colour Versions
Black
Ergonomics
Safety and Ergonomics
CE; ErP; RoHS; TUEV Type Approved
Additional Features
Special Characteristics
4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0,5 max/-0,5 max, horizontal ± 0,11 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control
Green Features
Energy Efficiency
Laser light source
Ecological Materials
100% recyclable packaging; Downloadable manuals
Ecological Standards
ErP compliant
Warranty
Projectors
3 years pan-European service
Light Source
3 years or 10000h (whatever comes first)
Shipping Content
Shipping Content
IR Remote Control (RD - 465E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM; Utility software
Optional Accessories
Optional Accessories
DLP-Link 3D Glasses (VolfoniFit); XpanD 3D Glasses (X105-RFX2); XpanD 3D RF Emitter (AD025-RF-X1)
Lenses
NP-9LS08ZM1 (0.9-1.35:1); NP-9LS12ZM1 (1.27-1.82:1); NP-9LS13ZM1 (1.42-2.23:1); NP-9LS16ZM1 (1.71-2.87:1); NP-9LS20ZM1 (2.25-4.18:1); NP-9LS40ZM1 (4.31-6.77:1)
OPS Slot-in Modules
Digital Signage Player; HD/SD-SDI Module; HDBaseT Receiver; Slot-in PCs
1 50% of initial brightness at the end of specified laser life time at 25 degree ambient temperature.
* This product has been equipped with a laser module and is classified as Class1 of IEC60825-1 Ed3 2014 and is classified as RG3 of IEC62471-5 Ed1 2015.
DO NOT LOOK DIRECTLY INTO THE BEAM.
