Seamless video walls to amplify your brand
Scale up your visual impact with the modular Sharp MultiSync® UN Series, purpose-designed with ultra-narrow bezels to create high-resolution video walls with minimal image interruption.
Advanced intelligent features and imaging performance powered by SpectraViewTM ensure precise and consistent visualisation across the entire wall, creating the impression of a single, continuous surface for clear and engaging content presentation.
Engineered for 24/7 operation in public spaces, the series combines robust metal construction with advanced thermal management to deliver reliable, long-lasting performance.
The 55-inch Sharp MultiSync® UN553V draws on its heritage of engineering excellence to deliver a premium experience yet at remarkable value. Positioned to fulfil the requirements of demanding signage applications, it is suited for retail environments, digital-out-of-home media, leisure and museum venues, as well as rental and staging scenarios.
Benefits
- Easy installation – effortless set up with Auto TileMatrix and out-of-the-box calibration. Ready-to-use image presets save time for predefined application scenarios.
- Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
- Lifelike and consistent colour – experience true to life colour reproduction with IPS panel technology. Uniform visibility is maintained in both landscape and portrait orientation, as well as at wide viewing angles as viewers pass by.
- Secure reliability and longevity – The metal chassis aids natural heat dissipation while the unique heat management system allows users to monitor and control internal temperatures, safeguarding components against heat build-up.
- Cost Saving Device Management – save effort whilst managing all connected Sharp and legacy devices from a centralised location by using the NaViSet Administrator 2 software tool.
Specifications
Product Information
Product Name

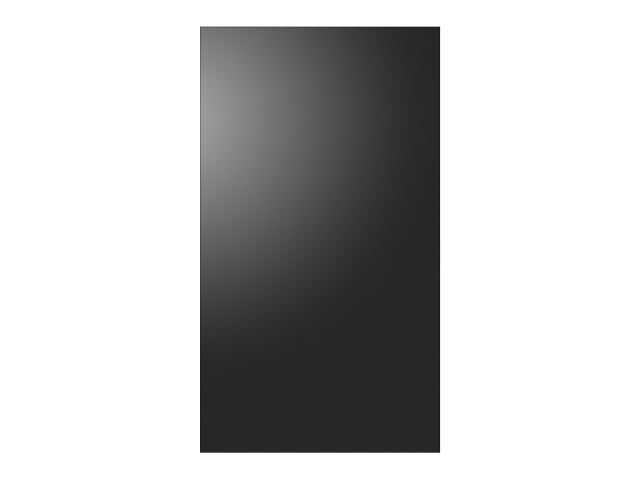

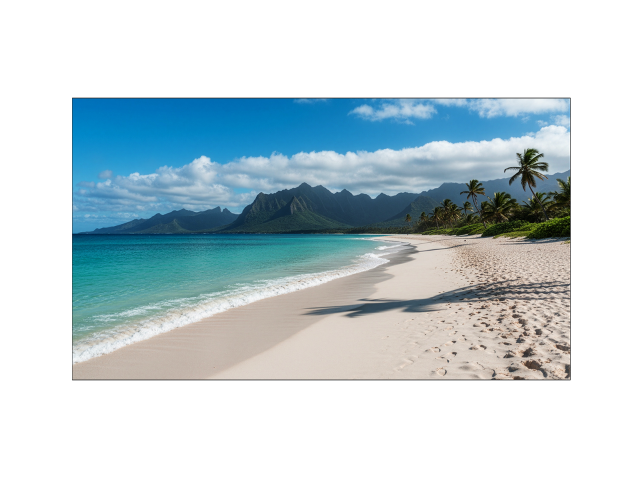

Sharp MultiSync® UN553V
Model
PN-UN553V
Product Group
LCD 55" Video Wall Display
Order Code
60006189
Display
Panel Technology
IPS with Direct LED backlights
Screen Size [inch/cm]
55 / 138.8
Aspect Ratio
16:9
Brightness [cd/m²]
500
Contrast Ratio (default)
> 3500:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Gamut
72% of NTSC
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Haze Level [%]
Pro (25)
Supported Orientation
Landscape; Portrait
Resolution
Native Resolution
1920 x 1080
Supported on DisplayPort and HDMI
1024 x 768; 1080i; 1080p; 1280 x 1024; 1280 x 768; 1360 x 768; 1600 x 1200; 1920 x 1080; 3840 x 2160; 640 x 480; 720p (50/60 Hz); 800 x 600
Supported on HDMI only
1080i (50/60 Hz)
Synchronisation Rate
Horizontal Frequency [kHz]
26 - 134
Vertical Frequency [Hz]
23 - 86
Connectivity
Input Video Analogue
1 x VGA; Composite (RCA)
Input Video Digital
1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Analogue
2 x 3,5 mm jack
Input Audio Digital
2 x DisplayPort; 2 x HDMI
Input Control
1 x Remote Control (3.5 mm jack); 1 x RS232; 2 x LAN 100Mbit
Input Data
1 x microSD (MediaPlayer); 1 x USB 1.0 (Downstream); 1 x USB 1.0 (MediaPlayer); 1 x USB 2.0 (Upstream); 2 x USB 1.0 (Compute Module, 1 x 5V/2A powered)
Output Video Digital
1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC); 1 x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer)
Output Audio Analogue
1 x 3,5 mm jack
Output Control
LAN 100Mbit
Calibration
Factory Calibration
Gamma; Intensity; RGB; Uniformity; White Point
Sensor Calibration (through USB)
PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration)
Calibration with Software
Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; Update Uniformity Correction; White Point
Calibration Software
Display Wall Calibrator
Open Modular Intelligence
OPS Slot
Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W]
3.6 / 58
Sensors
Human Sensor
Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
Electrical
Power Consumption [W]
140 shipping
Power Savings Mode [W]
< 0.5; < 2 (Networked Standby)
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 90
Storage Temperature [°C]
-20 to 60
Mechanical
Dimensions (W x H x D) [mm]
Without stand: 1,212.7 x 683.5 x 106.4
Weight [kg]
Without stand: 28.6
Bezel Width [mm]
1.1 bottom/right; 1.8 top/left; 2.9
VESA Mounting [mm]
4 holes; 400 x 400 (FDMI); M6
MediaPlayer
Supported Image Formats
JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Supported Video Formats
MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Supported Audio Formats
MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
Available Options
Accessories
Calibration kit (KT-LFD-CC2); Feet (ST-5220); Remote control kit (KT-RC3); Speaker (SP-RM3); Wall mount (PD04VWM MFS 46-55 L/P; PD04VW QR 46-55 L/P; CK02XUN MFS 55 L/P)
OPS Slot
Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs
Regulatory
Safety and Ergonomics
BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Pixel Failure Class
ISO 9241-307, Class 2
Green Features
Energy Efficiency
Carbon savings meter; Energy consumption: 122 kWh/1000 h; Energy efficiency class: G; Human sensor; LED backlight
Additional Features
Special Characteristics
Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; NaViSet Administrator 2 - free download; PJLink Support; TileMatrix; USB Media Player; User input priority definition; User readable log function
Colour Versions
Black Front Bezel, Black Back Cabinet
Audio
Optional Speakers (15 W + 15 W)
Plug and Play
VESA DDC/CI
Shipping Content
Display; DisplayPort Cable; HDMI Cable; LAN cable (RJ45); Power Cable
Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 1
Operating Hours
24/7
1 please refer to terms and conditions of warranty extensions
