Class-leading performance and value
For best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync® displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.
An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync® ME series suitable for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.
Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync® ME series is a class-leading solution for today’s workplace challenges, bringing value and professional performance, without compromise.
Benefits
- Seamless connectivity – native USB-C supports Bring Your Own Device workflows, safeguarding inclusion and boosting productivity, with a single cable connection between notebook and display.
- Best readability – aiding high productivity in well-lit meeting spaces, a high haze filter eliminates glare and reflections from windows and other light sources.
- Quick input detection – removing potential frustration and smoothing the way to productive meeting outcomes, the display responds immediately when a device is connected.
- Third-party compatibility – not simply a display, but an out-of-the-box solution, compatible with popular workplace and content management systems through the integrated SoC platform.
- New feature-ready – regular OTA Android OS updates ensure availability of the latest features and system security.
Specifications
Product Information
Product Name

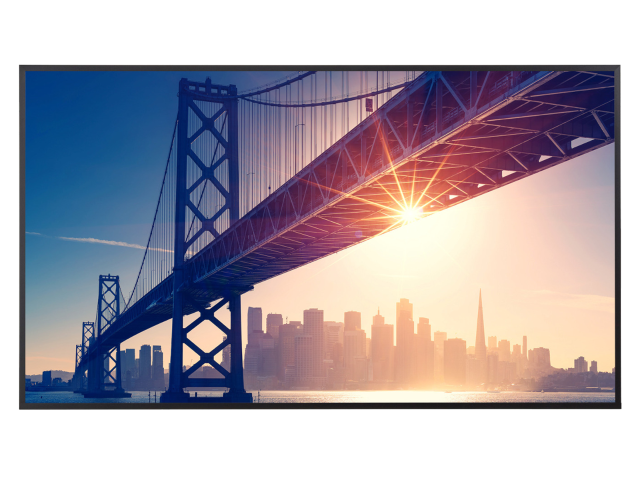

Sharp MultiSync® ME652
Model
PN-ME652
Product Group
LCD 65" Message Essential Large Format Display
Order Code
L50ME652
Display
Panel Technology
IPS with Direct LED backlights
Screen Size [inch/cm]
65 / 163.9
Aspect Ratio
16:9
Brightness [cd/m²]
450
Contrast Ratio (typ.)
1200:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]
1.073 (8bit + FRC)
HDR
HLG; PQ
Response Time (typ.) [ms]
8 (grey-to-grey)
Panel Refresh Rate [Hz]
60
Haze Level [%]
Pro (25)
Supported Orientation
Landscape; Portrait
Resolution
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768; 1024 x 768; 1280 x 1024; 1280 x 1024; 1280 x 720; 1280 x 800; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 480; 720 x 576; 800 x 600
Synchronisation Rate
Horizontal Frequency [kHz]
15 - 135
Vertical Frequency [Hz]
23 - 76
Connectivity
HDMI IN 1
Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
HDMI IN 2
Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
HDMI IN 3
ARC; Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
USB-A 1
USB (2.0); Peripherals
USB-A 2
USB (3.0); Peripherals; USB Storage
USB-A 3
USB (3.0); Peripherals; USB Storage
USB-A (Service)
Service
USB-C 1
Video Input; UHD (60 Hz); DP alt. 1.4; HDCP (2.2); Audio Input; USB 2.0 / 3.0; 15 W
Audio Output (3.5 mm)
Audio Output; Line Out
LAN 1
100 MBit/s
RS-232C
9600 bps
Remote In (3.5 mm)
IR-Extender
Input Detect
Custom; Last; First
Electrical
Power Consumption [W]
140 (typ.)
Power Savings Mode [W]
< 0.5; < 2 (Networked Standby)
Power Supply
100-240 V AC; 50/60 Hz; internal
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 90
Storage Temperature [°C]
-20 to 60
Mechanical
Dimensions (W x H x D) [mm]
1,463.3 x 838.2 x 68
Weight [kg]
23.9
Bezel Width [mm]
15.9 (symmetrical)

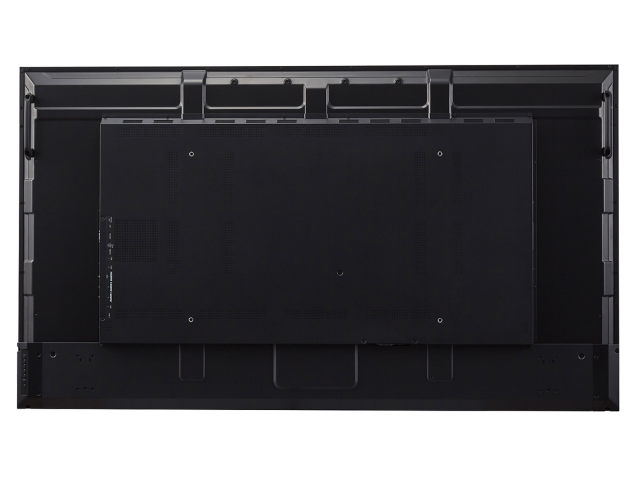

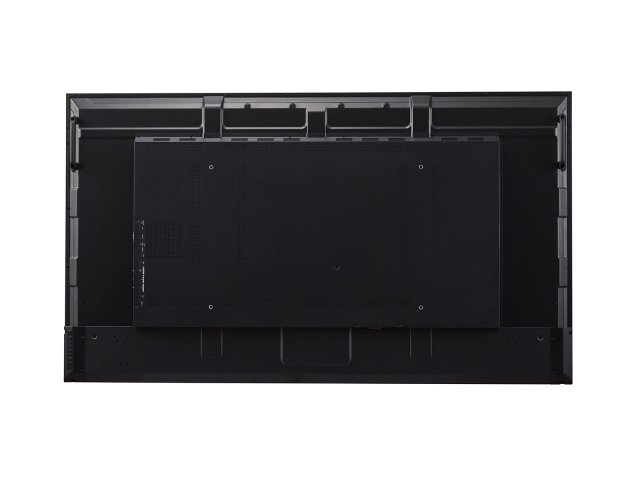

VESA Mounting [mm]
4 holes; 600 x 400 (FDMI); M8
Ingress Protection
IP5x (front); IP5x (back)
Packaging Dimensions (W x H x D) [mm]
1,628 x 942 x 185
Packaging Weight [kg]
34.5
Colour Bezel
Pantone (Process Black M)
Material
Metal
MediaPlayer
Supported File Storage / File System
FAT16 / FAT32 @ USB 2.0
Supported Video Formats
MKV (Mpeg1/2/3 Layer1/2/3, max res 4096x2160@60fps); MP4 (Mpeg1/2 Layer1/2/3, H.264, HEVC/H.265, max res 4096x2160@60fps)
Supported Audio Formats
.mp3 max. Bit Rate 320 kbps
Embedded Computing
System Version
Android 13
System Memory
4G RAM
Internal Storage
32GB ROM
Built-in Applications
File Manager; Web Browser
Available Options
Accessories
Feet (ST-65M); Presence Sensor (KT-RC3); Soundbar (PN-ZCMS1); Speaker (SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW T XL-2; L20PNWALL90EU; PDW S 32-65L/P); WiFi Dongle SI07B
Regulatory
Safety and Ergonomics
BSMI; CE; EMC Class B; Energy Star 8; FCC; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class
ISO 9241-307, Class 1
Resistance to Fire
Metal backcover, plastic material certified acc. to UL94-5VB
Green Features
Energy Efficiency
Energy consumption: 144 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards
EnergyStar 8.0
3rd Party Certifications
Cisco
Verified for Cisco Collaboration Devices
Crestron
Certified for Crestron CCV2 and XiO Cloud
Q-Sys
Q-Sys Plug-in
Additional Features
Special Characteristics
DICOM Simulation; HDMI ARC; Powered USB Port (15 W); Removable Logo
Audio
Integrated Speakers (2 x 10 W)
Shipping Content
2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 1
Operating Hours
18/7
External Control
AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; Scheduled Timer
Remote Management
Automated Email Alerts; NaViSet Administrator 2
Security
Disable HW Buttons; Disable IR Functionality
1 please refer to terms and conditions of warranty extensions
