Datasheet for Sharp PN-L862B

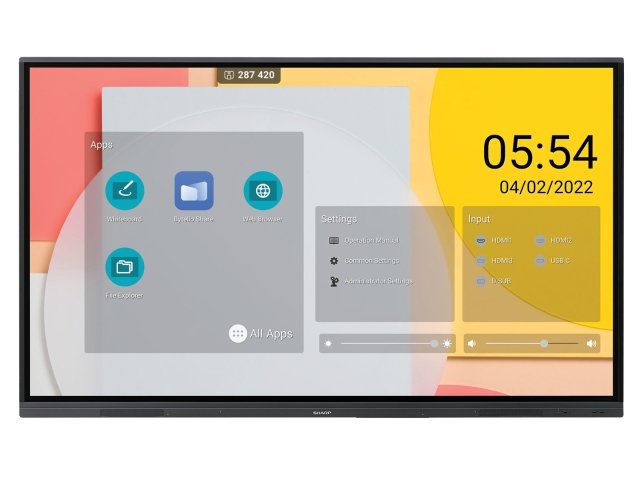

Sharp PN-L862B

LCD 86" Precision Touch Display

Sharp PN-L862B LCD 86" Precision Touch Display

Datasheet

Sharp PN-L862B
Sharp PN-L862B

Enjoy a more natural way of working

The BIG PAD L2B range of smart interactive displays combines genuine ‘4K reading and writing’ and an intuitive ‘Pen-on-Paper’ user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The L2B series also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity.

The BIG PAD L2B series is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.

Benefits

  • Pen-On-Paper user experience – Zero Bonding and Sharp’s PrecisionTouch technology enable highly accurate and responsive writing and drawing with up to 20 touch points.
  • Out-of-the-box collaboration – the integrated Android PC features a powerful home screen launcher offering fast and flexible access to a range of pre-installed applications.
  • Latest BYOD wireless collaboration – wirelessly share content from any device via the integrated Android PC or utilise the OPS slot to extend the BIG PADs functionality with third-party add-ons and solutions.
  • Maximum flexibility – provides exceptional freedom of use to meet the demands of even the most challenging corporate environments using USB-C, HDMI or VGA connectors.
  • ‘Secure by design’ – graded data security allows to adjust the level of security of the Android PC and maintain protection at the security level you need.
Product Information
Product Name
Sharp PN-L862B
Product Group
LCD 86" Precision Touch Display
Order Code
60005559
Display
Panel Technology
IPS with Direct LED backlights
Active Screen Area (W x H) [mm]
1,895 x 1,066
Screen Size [inch/cm]
86 / 217.4
Aspect Ratio
16:9
Brightness (without glass) [cd/m²]
400
Contrast Ratio (typ.)
1200:1
Viewing Angle [°]
178 / 178 (at contrast ratio > 10:1)
Response Time (typ.) [ms]
8
Supported Orientation
Landscape
Touch
Touch Technology
Precision
Number of Touches
Real multi-touch up to 20 touches
Touch Method
Finger; Gloves; Stylus dual pen tip (3mm/9mm)
Data Interface
USB-HID
Windows Ink
yes
Palm Rejection
no
Operating System
Native Multi-Touch: Windows 8.1/10/11, Linux, Android 9.0 or higher, Chrome OS 87 or higher; Single Touch (Default Mouse): Mac OS 10.15/11/12
Glass
Type
Thermal-tempered, anti-glare coating; Zero Bonding
Thickness [mm]
3.4
Haze Level [%]
3 ~ 8
Hardness [H]
≥ 8
Resolution
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768; 1280 x 1024; 1280 x 960; 1360 x 768; 1440 x 900; 1680 x 1050; 1920 x 1080; 1920 x 720; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 480; 720 x 576; 800 x 600
Connectivity
Input Video Analogue
1 x VGA
Input Video Digital
1 x USB-C (with HDCP, 65 W); 3 x HDMI (with HDCP)
Input Audio Analogue
1 x 3,5 mm jack
Input Control
LAN 100Mbit; RS232
Input Data
1 x USB 2.0 (Type-A); 2 x USB 3.0 (Type-B); 4 x USB 3.0 (Type-A)
Input Touch
1x USB Type-C (shared with video input); 2 x USB 2 (Type-B)
Output Audio Analogue
1 x 3,5 mm jack
Output Control
RS232
Open Modular Intelligence
OPS Slot
Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W]
3.25 / 65
Electrical
Power Consumption [W]
295 Eco (shipment setting), 470
Power Savings Mode [W]
< 0.5
Power Supply
100-240 V AC; 50/60 Hz
Environmental Conditions
Operating Temperature [°C]
+5 to +35
Operating Humidity [%]
20 to 80
Mechanical
Dimensions (W x H x D) [mm]
1,957 x 1,159.5 x 85.7
Weight [kg]
62.5
Bezel Width [mm]
16.8 (left, right and top); 45.7 (bottom)
VESA Mounting [mm]
4 holes; 800 x 600 (FDMI); M8
Packaging Dimensions (W x H x D) [mm]
2,112 x 1,283 x 280
Packaging Weight [kg]
84
Embedded Computing
System Version
Android 9.0
CPU
Arm Cortex-A73 (Quad-Core)
System Memory
4G RAM
Internal Storage
32GB ROM
Android Features
App side loading (Google CTS compliant); Hide Android SoC
Built-in Applications
File Manager; Input Select; PDF Viewer; Setting; Web Browser; Whiteboard; Wireless Screen Sharing - Bytello Share
Built-in Tools
Annotation overlay mode
Bluetooth
Bluetooth
5.0 compliant, supported protocols: A2DP, AVRCP, GATT, HID
Wireless LAN
WLAN
IEEE802.11 a/b/g/n/ac/ax compliant
Available Options
Accessories
Pen software license extension PN-SU01; Soundbar (PN-ZCMS1); Trolley (PD02MHA-CB86; PD03MHA-CB86); USB-C cable (USB-C 5M); Wall mount (SF680P)
OPS Slot
Recommended: OPS Enterprise Pro (100016118), OPS Enterprise Ultra (100016122)
Regulatory
Safety and Ergonomics
CE; FCC; RCM; REACH; RoHS; UKCA; UL/C-UL
3rd Party Certifications
Barco ClickShare
Tested compatible for Barco ClickShare (Conference)
Crestron
Certified for Crestron CCV2 and XiO Cloud
Additional Features
Special Characteristics
CEC Support; Clone Settings; HDMI ARC; NaViSet Administrator 2 - free download; Powered USB Port (65 W)
Audio
Integrated Speakers (10 W + 10 W)
Shipping Content
1x 300 cm USB Cable; 2 x Stylus; 2x AAA batteries; Bracket for Camera; Bracket for Mini PC; Cable Clamps; Display; Power Cable; Remote Control; User Manual
Warranty
3 years warranty incl. backlight; optional 4. + 5. year warranty extension 1
Operating Hours
16/7
Remote Management
NEC NaViSet Administrator 2
Security
Disable HW Buttons; Disable IR Functionality; Disable USB and LAN Ports; IEEE802.1X (Wi-Fi)

1 please refer to terms and conditions of warranty extensions
