Datasheet for Sharp PN-LA862

Sharp PN-LA862

LCD 86" InGlass™Touch Display

Sharp PN-LA862 LCD 86" InGlass™Touch Display

Datasheet

Sharp PN-LA862
Sharp PN-LA862

Safeguarding security and promoting productivity in hybrid meetings

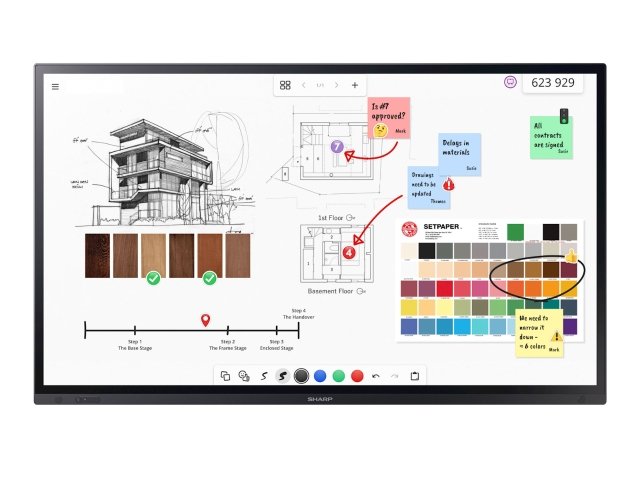

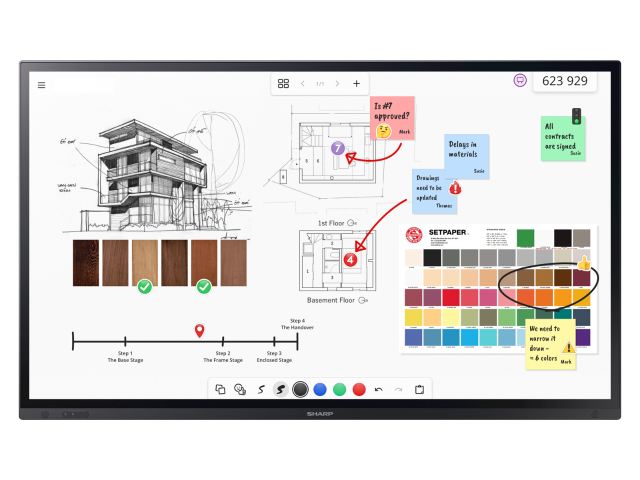

Bringing advanced professional functionality to Enterprise users, the Sharp/NEC LA series safeguards the highest IT security standards whilst supporting maximum choice and flexibility. An Intel™SDM slot expands the display’s customisable capability allowing safe and seamless integration into corporate IT systems, or benefit from pre-installed functionality including Sharp Meeting Launcher for quick access to your favourite apps and VC platforms, FlatFrog Board collaborative whiteboarding software, and AirServer™ for wireless screen sharing.

Featuring InGlass™ M5 premium touch technology, users benefit from the most natural writing experience and advanced interactive functionality. The high brightness output, high haze panel and premium glass coating delivers best readability in well-lit meeting rooms, without distraction from reflections, glare or fingerprints.

The LA series supports orientation any which way, including face up, allowing table-top, tilted desk or multi-board side-by-side installations for up to three displays. Users can connect their own notebook, safely and securely via a USB-C connection, providing best versatility in hybrid meetings and spontaneous collaborative interactions.

The LA series integrates elegantly and seamlessly into high-end meeting rooms and boardrooms providing trusted long-life performance whilst making minimal energy demands.

Benefits

  • Most natural writing experience – InGlass™ M5 premium touch system supports patented pressure sensitivity using passive pens as well as Windows Ink and palm rejection.
  • Secure by design – the non-Android platform with additional security features meets the highest IT security standards.

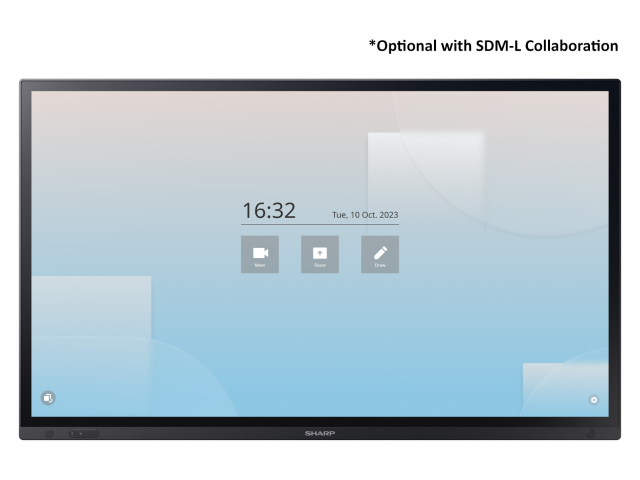

  • Optional Windows based Intel SDM slot-in PC – driving unlimited versatility with powerful integrated computing. Includes Sharp’s Meeting Launcher for quick and easy access to your apps offering a secure and locked environment.
  • Increase your productivity – benefit from a free one-year license for FlatFrog Board for Rooms. FlatFrog Board whiteboard software makes hybrid work easy and productive for everyone.
  • Energy efficiency – built-in functionality including an ambient light sensor, human presence detection and eco modes help to reduce power consumption.
Product Information
Product Name
Sharp PN-LA862
Product Group
LCD 86" InGlass™Touch Display
Order Code
60005935
Display
Panel Technology
IPS with Direct LED backlights
Screen Size [inch/cm]
86 / 217.4
Aspect Ratio
16:9
Brightness [cd/m²]
500 (LCD panel without glass); 450 (product)
Contrast Ratio (typ.)
1200:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]
1.073 (10bit)
Colour Gamut
68% of DCI
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Supported Orientation
Face Up 1; Landscape; Portrait
Touch
Touch Technology
InGlass™ M5
Number of Touches
Real multi-touch up to 20 touches
Response Time [ms]
≤ 15
Touch Method
Finger; Gloves; Stylus (≥ 2 mm)
Supported Operating System
Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X
Data Interface
USB-HID
Accuracy [mm]
< 1
Windows Ink
yes
Palm Rejection
yes
Glass
Type
Premium toughened glass, anti-glare coating; Zero Bonding
Thickness [mm]
3
Haze Level [%]
4 ~ 8
Hardness [H]
≥ 8
Resolution
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768; 1280 x 1024; 1280 x 720; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1920 x 1080; 1920 x 1200; 1920 x 2160; 2560 x 1440; 2560 x 1600; 3840 x 2160; 4096 x 2160; 7680 x 4320
Synchronisation Rate
Horizontal Frequency [kHz]
15 - 135
Vertical Frequency [Hz]
23 - 76
Connectivity
Input Video Digital
1 x DisplayPort (with HDCP); 1 x USB-C (with HDCP, 65 W); 2 x HDMI (with HDCP)
Input Audio Digital
1 x DisplayPort; 2 x HDMI
Input Control
LAN 100Mbit; RS232
Input Data
1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream); 2 x USB 2.0 (Downstream)
Input Touch
1 x USB 2 (Type-B); 1x USB Type-C (shared with video input)
Output Video Digital
1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC)
Output Audio Analogue
1 x 3,5 mm jack
Output Control
1 x LAN 100Mbit
Input Detect
Custom; First; Last
PiP/PbP
Dual-Split; Quad-Split; scalable picture size
Open Modular Intelligence
Intel® SDM
accepts Intel® Smart Display Modules Large and Small up to 66 W
Sensors
Ambient Light Sensor
Integrated, triggered actions programmable
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
Presence Sensor
H angle left: 60°, H angle right: 60°, Distance: 3.6 m
Electrical
Power Consumption [W]
275 shipping
Power Savings Mode [W]
< 0.5; < 2 (Networked Standby)
Power Management
VESA DPMS
Power Supply
100-240 V AC; 50/60 Hz; internal
Environmental Conditions
Operating Temperature [°C]
+0 to +35
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 80
Storage Temperature [°C]
-20 to 60
Mechanical
Dimensions (W x H x D) [mm]
1,965.4 x 1,163.9 x 86.5
Weight [kg]
71.5
Bezel Width [mm]
32.3 (bottom); 4.8 (left, right and top)
VESA Mounting [mm]
4 holes; 600 x 400 (FDMI); M8
Ingress Protection
IP6x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm]
2,095 x 1,310 x 225
Packaging Weight [kg]
87
Material
Metal
Available Software
Free Software Included
FlatFrog Board for Rooms (1 year) - free download
Available Options
Accessories
Pen software license extension PN-SU01; Trolley (L20PNSR780MEU, PD02MHA, PD03MHA); USB-C cable (USB-C 5M); Wall mount (L20PNWALL90EU)
Regulatory
Safety and Ergonomics
CE; EMC Class B; Energy Star 8; FCC Class B; PSB; RCM; RoHS; SASO; UKCA; UL/C-UL
Pixel Failure Class
ISO 9241-307, Class 1
Resistance to Fire
Metal backcover, plastic material certified acc. to UL94-5VB
Green Features
Energy Efficiency
Ambient light sensor; ECOMode; Human sensor; LED backlight; Local dimming
Ecological Standards
EnergyStar 8.0
3rd Party Certifications
Cisco
Verified for Cisco Collaboration Devices
Barco ClickShare
Tested compatible for Barco ClickShare (Conference)
Crestron
Certified for Crestron CCV2 and XiO Cloud
Additional Features
Special Characteristics
CEC Support; Clone Settings; Display Browser Control; HDMI ARC; HTTP Server; NaViSet Administrator 2 - free download; Powered USB Port (65 W)
Audio
Integrated Audio Amplifier (for optional speakers up to 2 x 15 W); Integrated Speakers (10 W + 10 W)
Shipping Content
1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Bracket for Mini PC; Cable Clamps; Display; Power Cable; Remote Control; Setup Manual
Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2
Operating Hours
24/7
External Control
Crestron V2; HDMI CEC; HTTP Browser; Scheduled Timer
Remote Management
Automated Email Alerts; NEC NaViSet Administrator 2
Security
Disable HW Buttons; Disable IR Functionality; Disable USB and LAN Ports; Emergency Notification; IEEE802.1X (LAN)

1 adjusted usage conditions for face up/down installations, please refer to operational guidelines or contact our support

2 please refer to terms and conditions of warranty extensions
